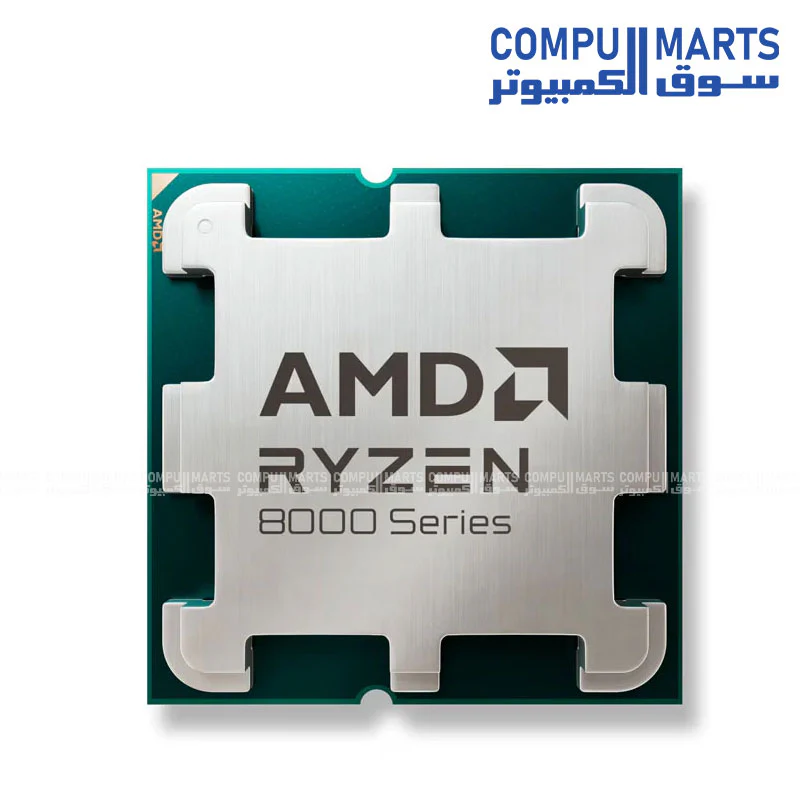

AMD Ryzen 7 8700F Processor
| Category | Specification Details |
|---|---|
| Product | AMD Ryzen 7 8700F Processor |
| Architecture | Zen 4 (Phoenix) |
| Cores / Threads | 8 Cores / 16 Threads (SMT Supported) |
| Clock Speed | Base: 4.1 GHz | Max Boost: Up to 5.0 GHz |
| AI Performance | AMD Ryzen AI Available | Performance: Up to 16 TOPS |
| Cache | L2: 8 MB | L3: 16 MB |
| TDP | Default: 65W (Configurable cTDP: 45W-65W) |
| Manufacturing Tech | TSMC 4nm FinFET | Die Size: 178mm² |
| Socket & Chipsets | AM5 (A620, X670/E, B650/E, X870/E, B840, B850) |
| Memory Support | DDR5 (Max 256 GB) | UDIMM | 2 Channels |
| Memory Speed | 2x1R/2x2R: DDR5-5200 | 4x1R/4x2R: DDR5-3600 |
| PCI Express | PCIe 4.0 (20 Total / 16 Usable Lanes) |
| Graphics | Discrete Graphics Card Required (No Integrated Graphics) |
| Connectivity | Native USB 4 (40Gbps): 2 | USB 3.2 Gen 2 (10Gbps): 2 | USB 2.0: 1 |
| Advanced Features | AMD EXPO, Precision Boost Overdrive, Curve Optimizer, AMD Ryzen Master, SmartAccess Memory |
| Operating Temp | Max 95°C (Tjmax) |
| Launch Date | 04/01/2024 |
| Product IDs | Boxed: 100-100001590BOX | Tray: 100-000001590 | MPK: 100-100001590MPK |
Select Style
From $0.01
Original: $0.02
-50%AMD Ryzen 7 8700F Processor—
$0.02
$0.01Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Category | Specification Details |
|---|---|
| Product | AMD Ryzen 7 8700F Processor |
| Architecture | Zen 4 (Phoenix) |
| Cores / Threads | 8 Cores / 16 Threads (SMT Supported) |
| Clock Speed | Base: 4.1 GHz | Max Boost: Up to 5.0 GHz |
| AI Performance | AMD Ryzen AI Available | Performance: Up to 16 TOPS |
| Cache | L2: 8 MB | L3: 16 MB |
| TDP | Default: 65W (Configurable cTDP: 45W-65W) |
| Manufacturing Tech | TSMC 4nm FinFET | Die Size: 178mm² |
| Socket & Chipsets | AM5 (A620, X670/E, B650/E, X870/E, B840, B850) |
| Memory Support | DDR5 (Max 256 GB) | UDIMM | 2 Channels |
| Memory Speed | 2x1R/2x2R: DDR5-5200 | 4x1R/4x2R: DDR5-3600 |
| PCI Express | PCIe 4.0 (20 Total / 16 Usable Lanes) |
| Graphics | Discrete Graphics Card Required (No Integrated Graphics) |
| Connectivity | Native USB 4 (40Gbps): 2 | USB 3.2 Gen 2 (10Gbps): 2 | USB 2.0: 1 |
| Advanced Features | AMD EXPO, Precision Boost Overdrive, Curve Optimizer, AMD Ryzen Master, SmartAccess Memory |
| Operating Temp | Max 95°C (Tjmax) |
| Launch Date | 04/01/2024 |
| Product IDs | Boxed: 100-100001590BOX | Tray: 100-000001590 | MPK: 100-100001590MPK |
