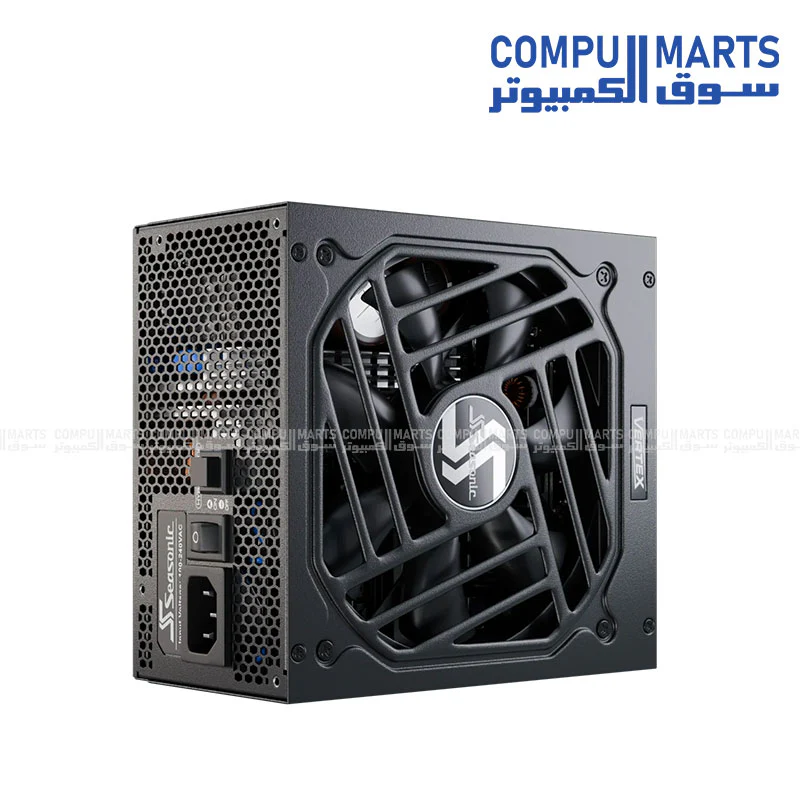

Seasonic Prime PX-1000 1000W 80PLUS Platinum Fully Modular Power Supply
| Category | Specification Details |
|---|---|
| 80PLUS® | Platinum |
| Cybenetics Efficiency Level | Platinum |
| Cybenetics Noise Level | A |
| Form Factor | ATX/EPS |
| Dimensions | 160 × 150 × 86 mm |
| Fan Size | 135 mm |
| Fan Control | Digital Fan Control |
| Fan Bearing | Fluid Dynamic Bearing |
| Life Expectancy | 50,000 hours at 40 °C, 15 % - 65 % RH |
| Modularity | Fully Modular |
| Cable type | Cables with Braided Pattern |
| Operating Temperature | 0 - 50 °C |
| MTBF @ 25 °C | 100,000 hours (excl. fan) |
| AC Input | Full Range (100 V - 240 V, 13 - 6.5 A, 50 Hz - 60 Hz) |
| Protection | OPP, OVP, UVP, OCP, OTP, SCP |
| Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, EAC, CE |
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH |
| Warranty | 12 Years |
| DC Output Rail +3.3 V | 25 A, 125 W |
| DC Output Rail +5 V | 25 A, 125 W |
| DC Output Rail +12 V | 83 A, 996 W |
| DC Output Rail -12 V | 0.3 A, 3.6 W |
| DC Output Rail +5 VSB | 3 A, 15 W |
| Total Continuous Power | 1000 W |
$77.30
Original: $257.66
-70%Seasonic Prime PX-1000 1000W 80PLUS Platinum Fully Modular Power Supply—
$257.66
$77.30Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Category | Specification Details |
|---|---|
| 80PLUS® | Platinum |
| Cybenetics Efficiency Level | Platinum |
| Cybenetics Noise Level | A |
| Form Factor | ATX/EPS |
| Dimensions | 160 × 150 × 86 mm |
| Fan Size | 135 mm |
| Fan Control | Digital Fan Control |
| Fan Bearing | Fluid Dynamic Bearing |
| Life Expectancy | 50,000 hours at 40 °C, 15 % - 65 % RH |
| Modularity | Fully Modular |
| Cable type | Cables with Braided Pattern |
| Operating Temperature | 0 - 50 °C |
| MTBF @ 25 °C | 100,000 hours (excl. fan) |
| AC Input | Full Range (100 V - 240 V, 13 - 6.5 A, 50 Hz - 60 Hz) |
| Protection | OPP, OVP, UVP, OCP, OTP, SCP |
| Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, EAC, CE |
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH |
| Warranty | 12 Years |
| DC Output Rail +3.3 V | 25 A, 125 W |
| DC Output Rail +5 V | 25 A, 125 W |
| DC Output Rail +12 V | 83 A, 996 W |
| DC Output Rail -12 V | 0.3 A, 3.6 W |
| DC Output Rail +5 VSB | 3 A, 15 W |
| Total Continuous Power | 1000 W |
