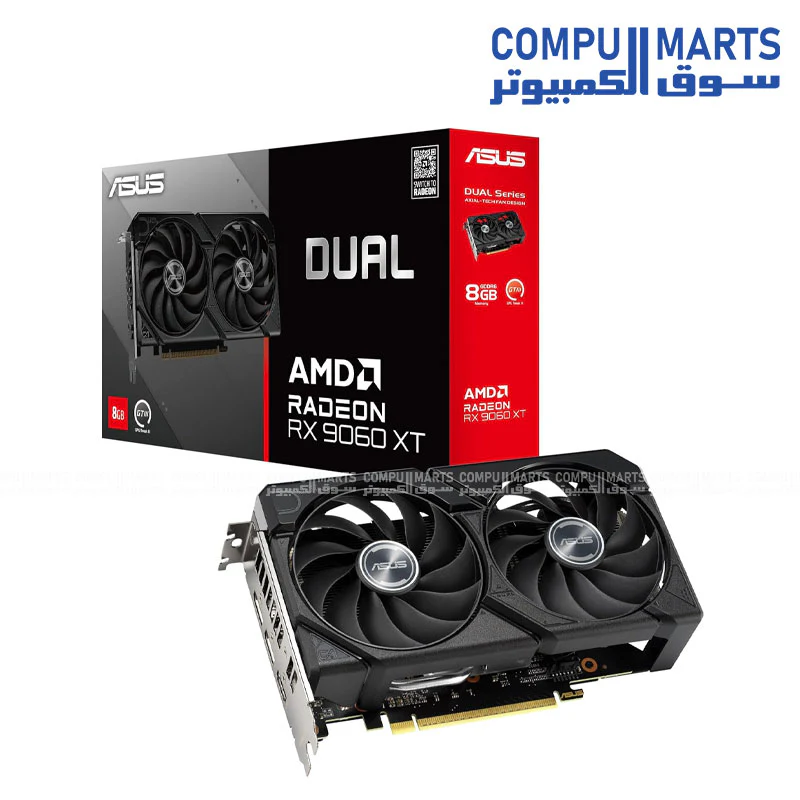

ASUS Dual Radeon RX 9060 XT 8GB GDDR6 Graphics Card – Dual Fan Cooling

ASUS Dual Radeon RX 9060 XT 8GB GDDR6 Graphics Card – Dual Fan Cooling





GPU Specifications:

• Graphics Engine: AMD Radeon RX 9060 XT

• Stream Processors: 2048

• Core Clock Speeds:

  • OC Mode: Boost Clock up to 3150 MHz, Game Clock up to 2550 MHz

  • Default Mode: Boost Clock up to 3130 MHz, Game Clock up to 2530 MHz

• Supported APIs: DirectX 12, OpenGL 4.6

Memory and Performance

• Memory Size: 8GB GDDR6

• Memory Speed: 20 Gbps

• Memory Interface: 128-bit

• Interface Type: PCI Express 5.0

Display and Output:

• Maximum Resolution: 7680 x 4320 (8K support)

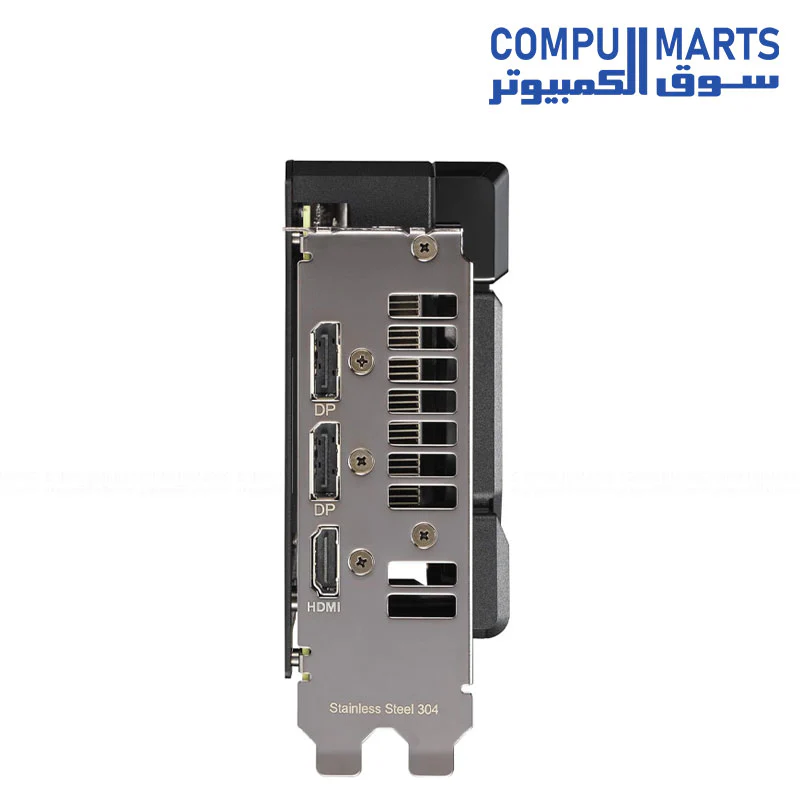

• Display Outputs:

  • 2 x DisplayPort 2.1a

  • 1 x HDMI 2.1b

• HDCP Support: Yes, version 2.3

• Multi-Display Support: Up to 3 monitors

Cooling and Power:

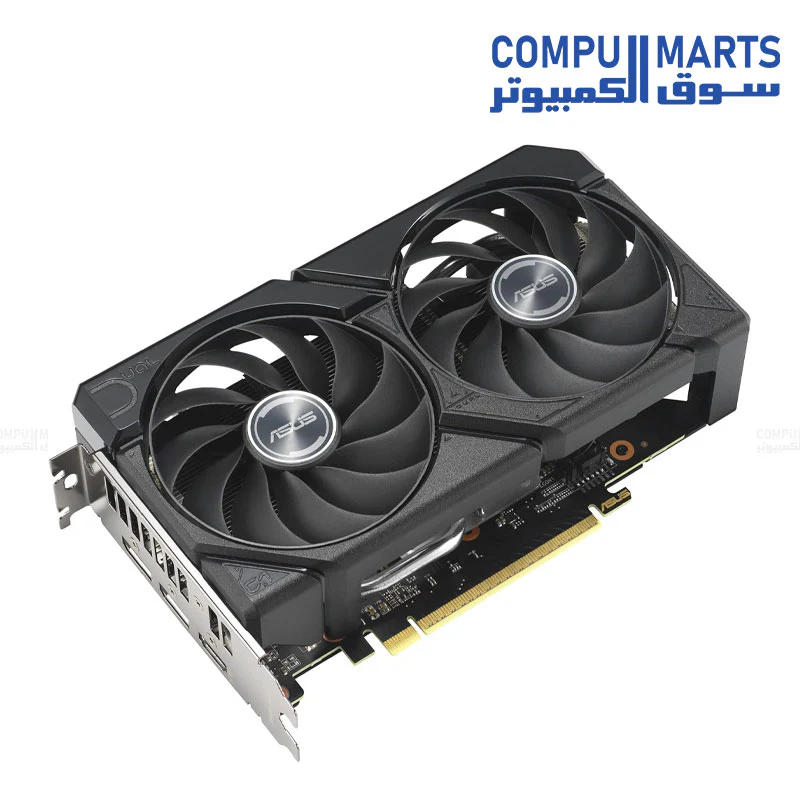

• Cooling System: Dual-fan design for optimized airflow

• Recommended PSU: 550W

• Power Connector: 1 x 8-pin

Physical Dimensions:

• Card Size: 202 x 120 x 49 mm

• Slot Size: 2.5-slot
