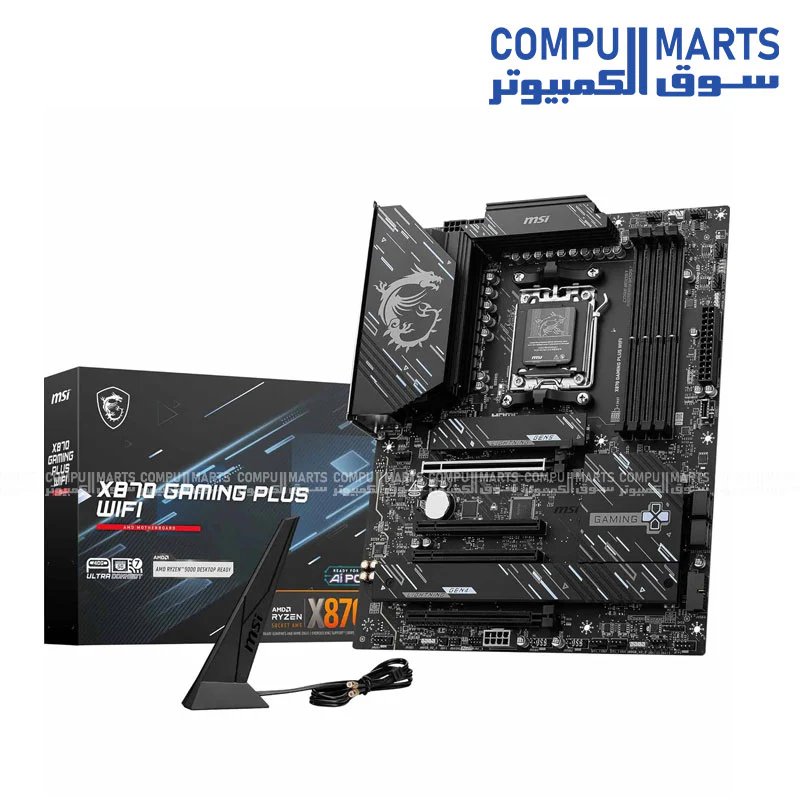

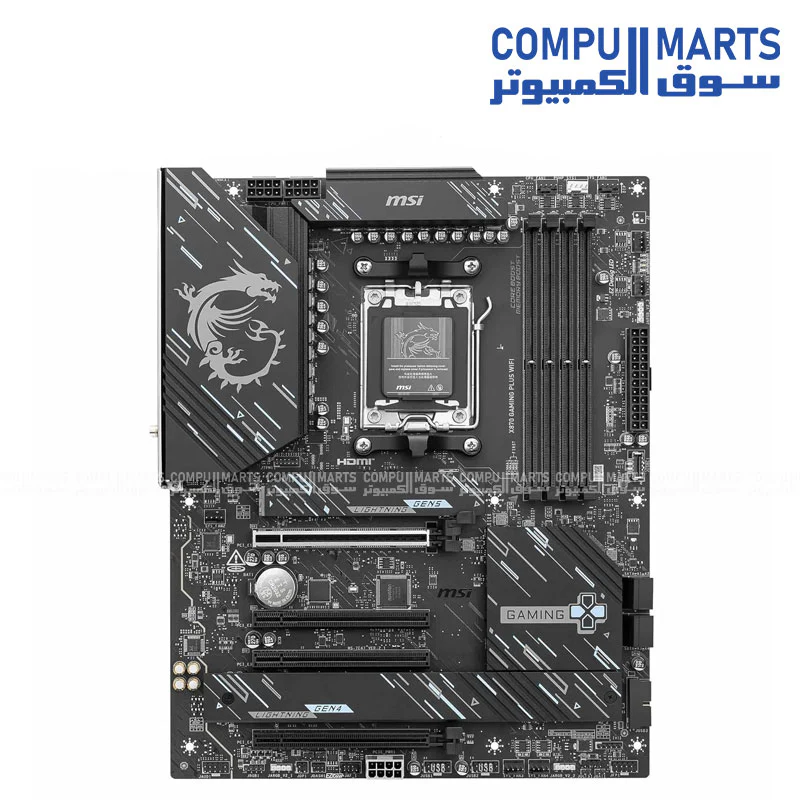

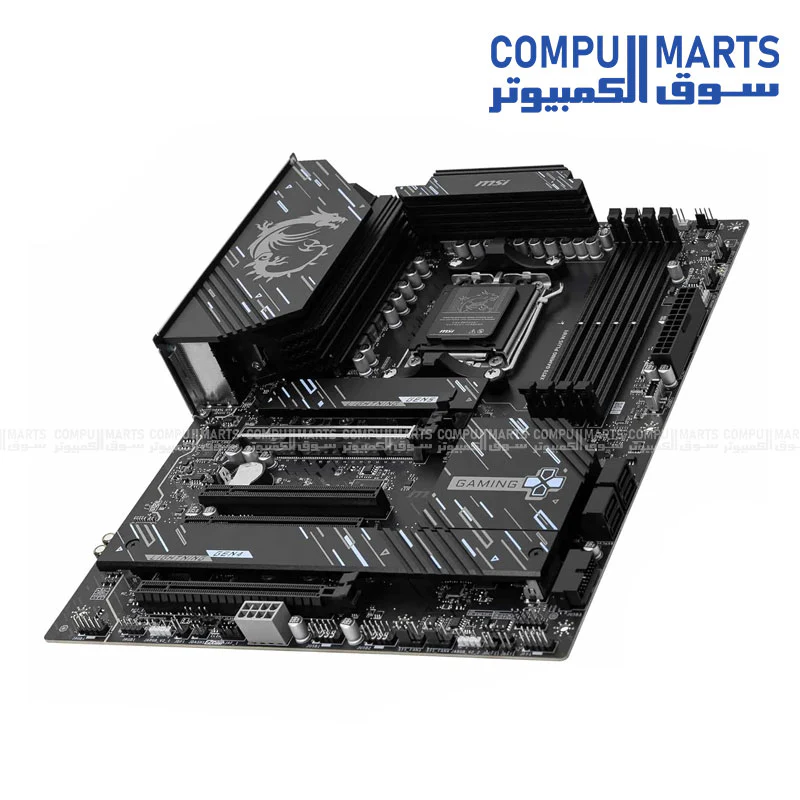

MSI X870E Gaming Plus WiFi – AMD AM5 ATX DDR5 Motherboard with PCIe 5.0 & Wi-Fi 6E
| Category | Specification Details |
|---|---|
| Chipset | AMD X870E |
| CPU Support | AMD Ryzen™ 9000 / 8000 / 7000 Series (Socket AM5) |
| Memory | 4x DDR5, Max 256GB | Supports up to 8200+ MT/s (OC) | EXPO Supported |
| Expansion Slots | 1x PCIe 5.0 x16 (CPU), 1x PCIe 4.0 x4, 2x PCIe 3.0 x1 |
| Storage | 1x M.2 Gen5 x4 | 2x M.2 Gen4 x4 | 4x SATA 6Gbps |
| USB Ports | 1x USB4 (40Gbps) Type-C | 1x USB 3.2 Gen 2x2 (20Gbps) | 3x USB 10Gbps |
| Networking | Realtek® 5G LAN | Wi-Fi 7 | Bluetooth 5.4 |
| Audio | Realtek® ALC897 7.1-Channel HD Audio |
| Video Output | 1x HDMI 2.1 (4K/60Hz) | 1x USB4 Type-C (DP 1.4, 4K/120Hz) |
| Internal Headers | 1x 8-pin PCIe Power | 8x Fan Headers | 4x RGB Headers (3x ARGB V2) |
| Special Features | Clear CMOS & Flash BIOS Buttons | EZ Debug LEDs | EZ Conn-header |
| OS Support | Windows 11 64-bit |
$271.02
MSI X870E Gaming Plus WiFi – AMD AM5 ATX DDR5 Motherboard with PCIe 5.0 & Wi-Fi 6E—
$271.02
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Category | Specification Details |
|---|---|
| Chipset | AMD X870E |
| CPU Support | AMD Ryzen™ 9000 / 8000 / 7000 Series (Socket AM5) |
| Memory | 4x DDR5, Max 256GB | Supports up to 8200+ MT/s (OC) | EXPO Supported |
| Expansion Slots | 1x PCIe 5.0 x16 (CPU), 1x PCIe 4.0 x4, 2x PCIe 3.0 x1 |
| Storage | 1x M.2 Gen5 x4 | 2x M.2 Gen4 x4 | 4x SATA 6Gbps |
| USB Ports | 1x USB4 (40Gbps) Type-C | 1x USB 3.2 Gen 2x2 (20Gbps) | 3x USB 10Gbps |
| Networking | Realtek® 5G LAN | Wi-Fi 7 | Bluetooth 5.4 |
| Audio | Realtek® ALC897 7.1-Channel HD Audio |
| Video Output | 1x HDMI 2.1 (4K/60Hz) | 1x USB4 Type-C (DP 1.4, 4K/120Hz) |
| Internal Headers | 1x 8-pin PCIe Power | 8x Fan Headers | 4x RGB Headers (3x ARGB V2) |
| Special Features | Clear CMOS & Flash BIOS Buttons | EZ Debug LEDs | EZ Conn-header |
| OS Support | Windows 11 64-bit |
