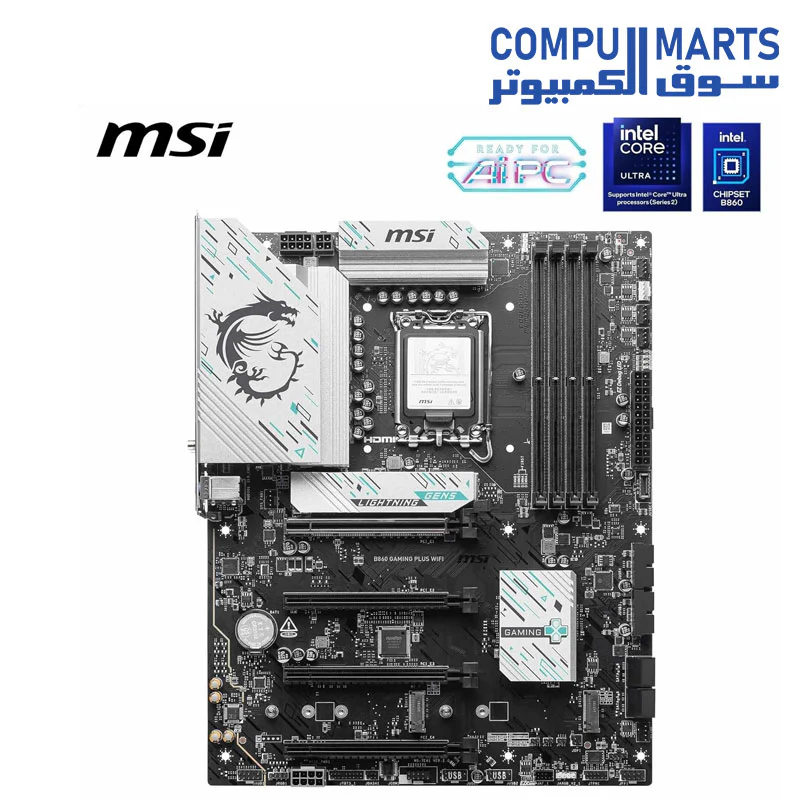

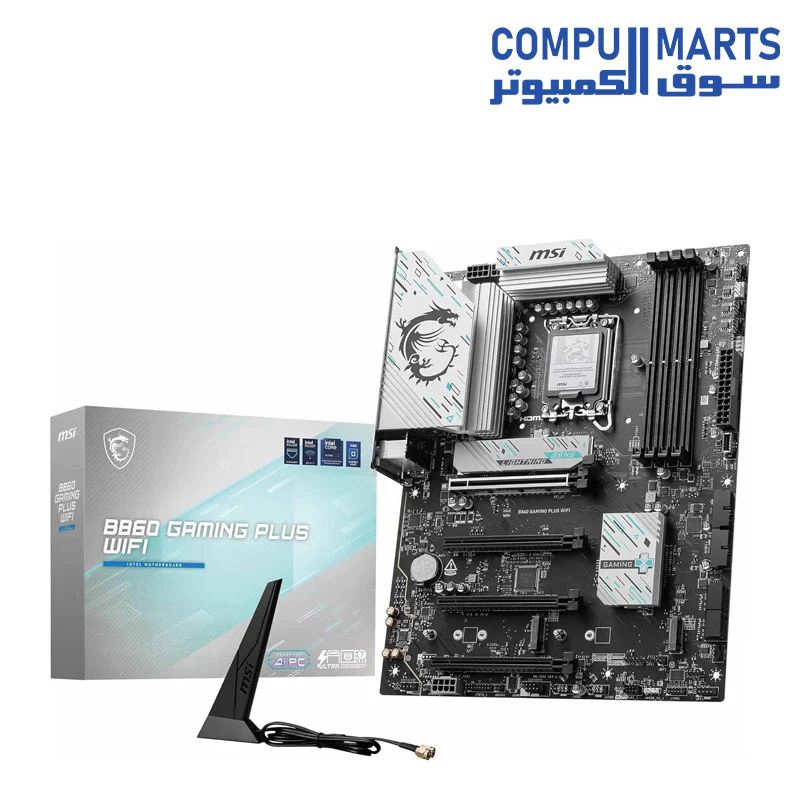

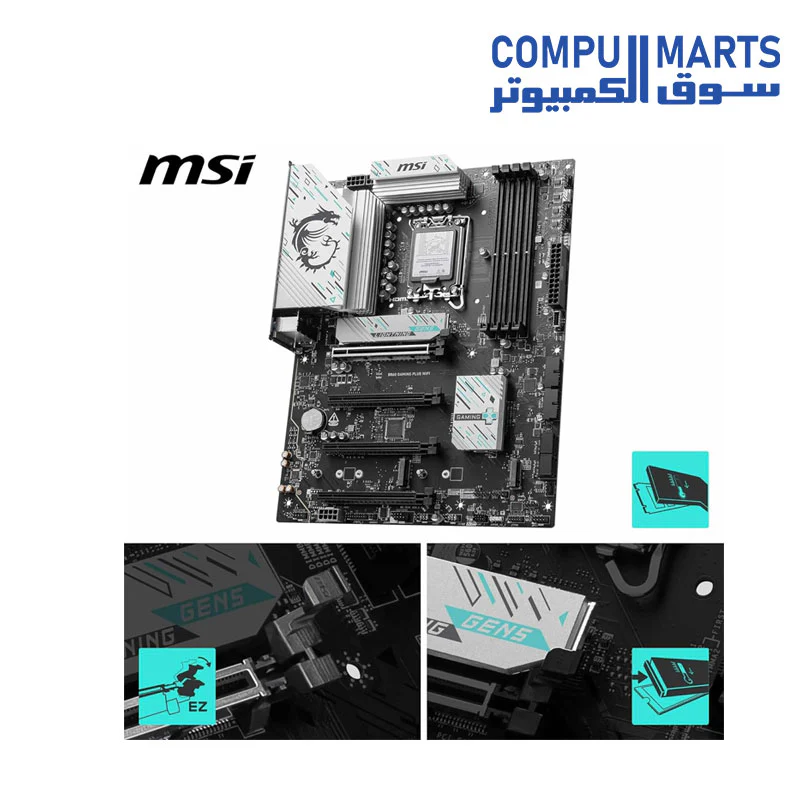

MSI B860 Gaming Plus WiFi Motherboard – Intel LGA1851 – ATX – DDR5 – PCIe 5.0 – M.2 – WiFi – USB 3.2 – For Intel Core Ultra Processors

MSI B860 Gaming Plus WiFi Motherboard – Intel LGA1851 – ATX – DDR5 – PCIe 5.0 – M.2 – WiFi – USB 3.2 – For Intel Core Ultra Processors

Category Specification Details
Chipset Intel® B860
CPU Support Supports Intel® Core™ Ultra Processors (Series 2) - LGA 1851 socket
Memory 4x DDR5 UDIMM, Max 256GB. Supports up to 8800+(OC) MT/s. Intel® XMP 3.0 & CUDIMM Support.
Expansion Slots 1x PCIe 5.0 x16 (CPU), 1x PCIe 4.0 x4 (Chipset), 2x PCIe 4.0 x1 (Chipset)
Onboard Graphics 1x HDMI™ 2.1 (4K 60Hz), 1x DisplayPort 1.4 (4K 60Hz), 1x Thunderbolt™ 4 (8K 60Hz)
Storage 1x M.2 Gen5 x4, 2x M.2 Gen4 x4/x2, 4x SATA 6G. RAID 0/1/5/10 supported.
Thunderbolt™ 4 1x Rear Port (40Gbps), supports daisy-chaining and 15W power charging.
Wireless & BT Intel® Killer™ Wi-Fi 7 (Up to 5.8Gbps) + Bluetooth® 5.4
LAN Intel® Killer™ E5000 5Gbps LAN
Audio Realtek® ALC897 Codec, 7.1-Channel HD Audio

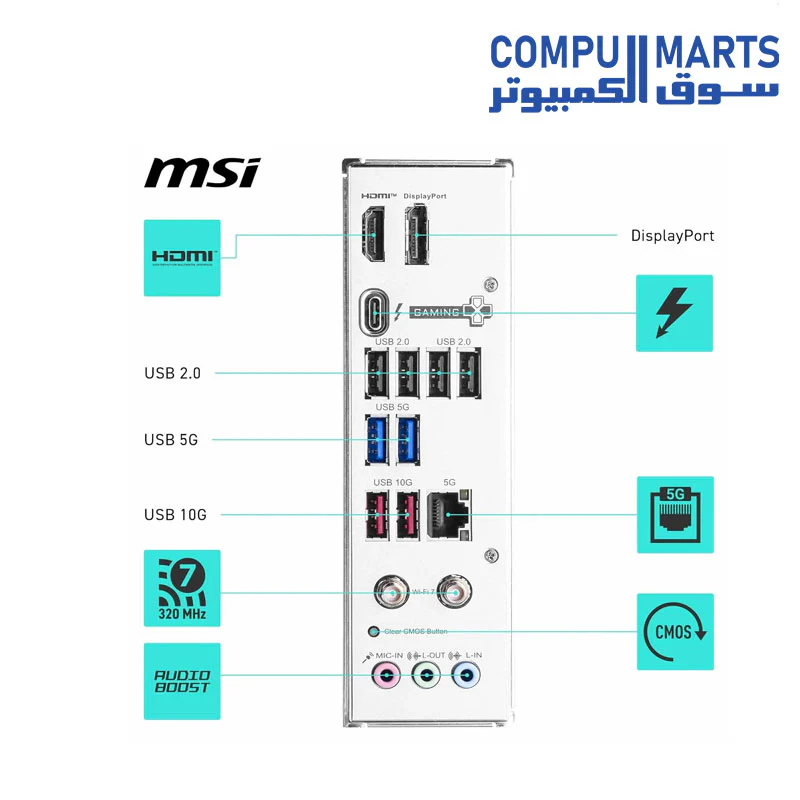

USB (Rear) 1x TB4 (Type-C), 2x 10Gbps (Type-A), 2x 5Gbps (Type-A), 4x USB 2.0
USB (Front) 1x 10Gbps (Type-C), 4x 5Gbps (Type-A), 4x USB 2.0
Internal Headers Thunderbolt 5 card connector, EZ Conn-header (JAF_1), 3x RGB Headers, 6x Fan headers
Form Factor ATX (243.84mm x 304.8mm)
$213.74
MSI B860 Gaming Plus WiFi Motherboard – Intel LGA1851 – ATX – DDR5 – PCIe 5.0 – M.2 – WiFi – USB 3.2 – For Intel Core Ultra Processors—
$213.74

Product Information

Shipping & Returns

Description

Category Specification Details
Chipset Intel® B860
CPU Support Supports Intel® Core™ Ultra Processors (Series 2) - LGA 1851 socket
Memory 4x DDR5 UDIMM, Max 256GB. Supports up to 8800+(OC) MT/s. Intel® XMP 3.0 & CUDIMM Support.
Expansion Slots 1x PCIe 5.0 x16 (CPU), 1x PCIe 4.0 x4 (Chipset), 2x PCIe 4.0 x1 (Chipset)
Onboard Graphics 1x HDMI™ 2.1 (4K 60Hz), 1x DisplayPort 1.4 (4K 60Hz), 1x Thunderbolt™ 4 (8K 60Hz)
Storage 1x M.2 Gen5 x4, 2x M.2 Gen4 x4/x2, 4x SATA 6G. RAID 0/1/5/10 supported.
Thunderbolt™ 4 1x Rear Port (40Gbps), supports daisy-chaining and 15W power charging.
Wireless & BT Intel® Killer™ Wi-Fi 7 (Up to 5.8Gbps) + Bluetooth® 5.4
LAN Intel® Killer™ E5000 5Gbps LAN
Audio Realtek® ALC897 Codec, 7.1-Channel HD Audio
USB (Rear) 1x TB4 (Type-C), 2x 10Gbps (Type-A), 2x 5Gbps (Type-A), 4x USB 2.0
USB (Front) 1x 10Gbps (Type-C), 4x 5Gbps (Type-A), 4x USB 2.0
Internal Headers Thunderbolt 5 card connector, EZ Conn-header (JAF_1), 3x RGB Headers, 6x Fan headers
Form Factor ATX (243.84mm x 304.8mm)
