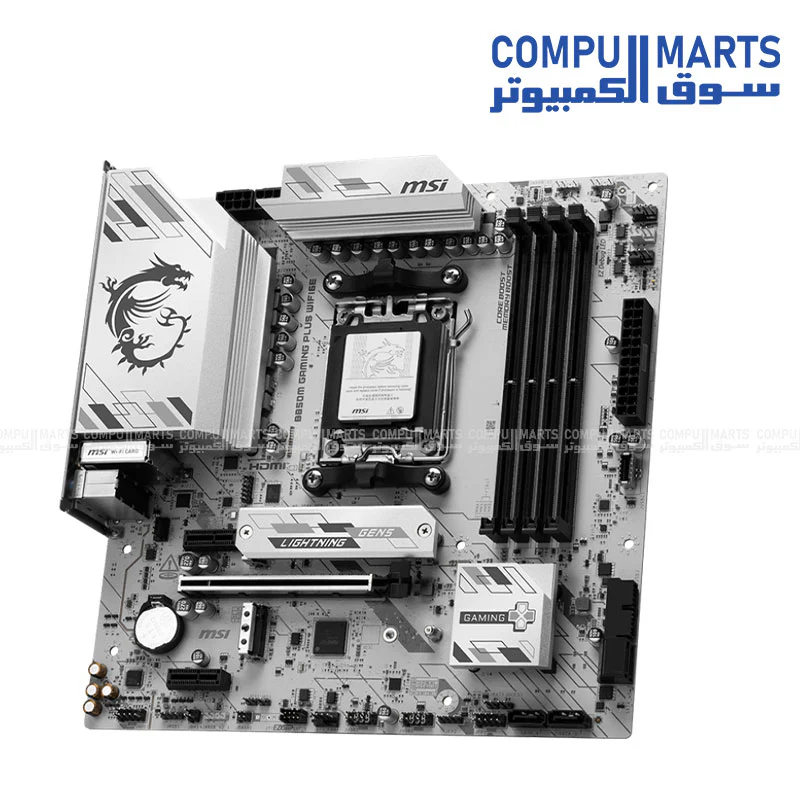

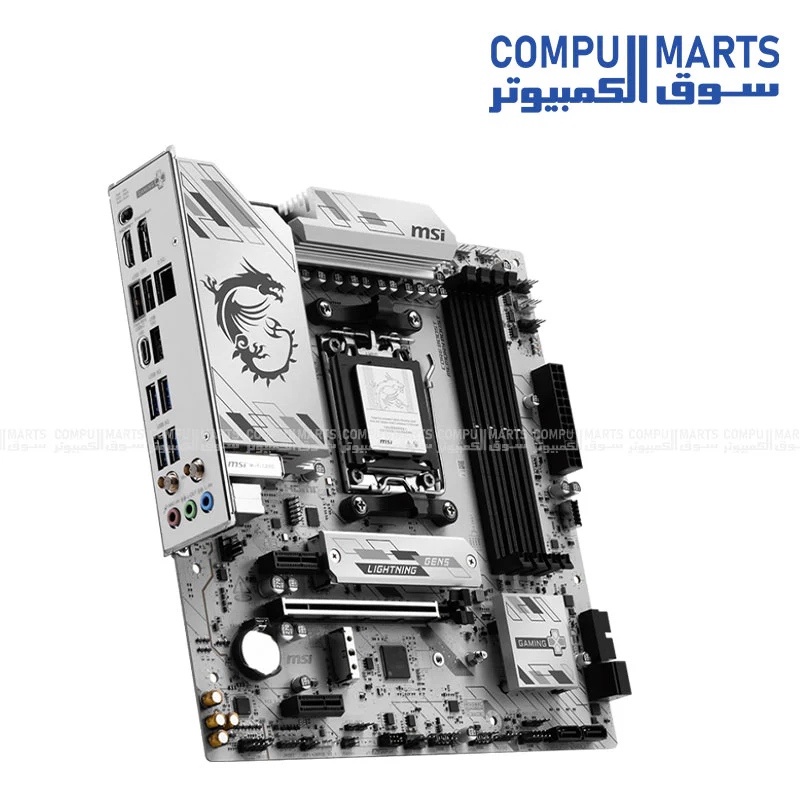

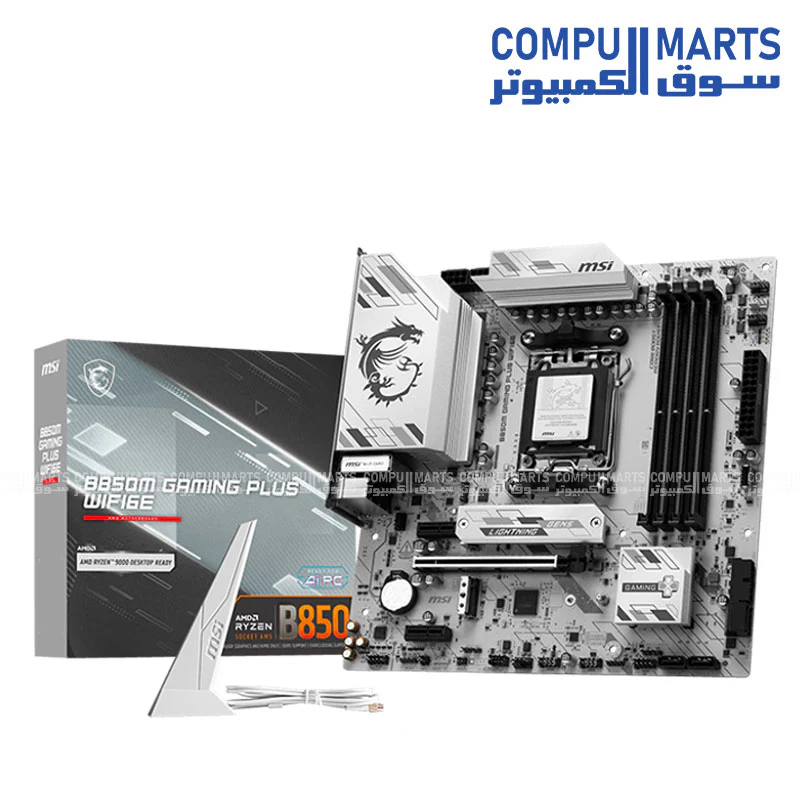

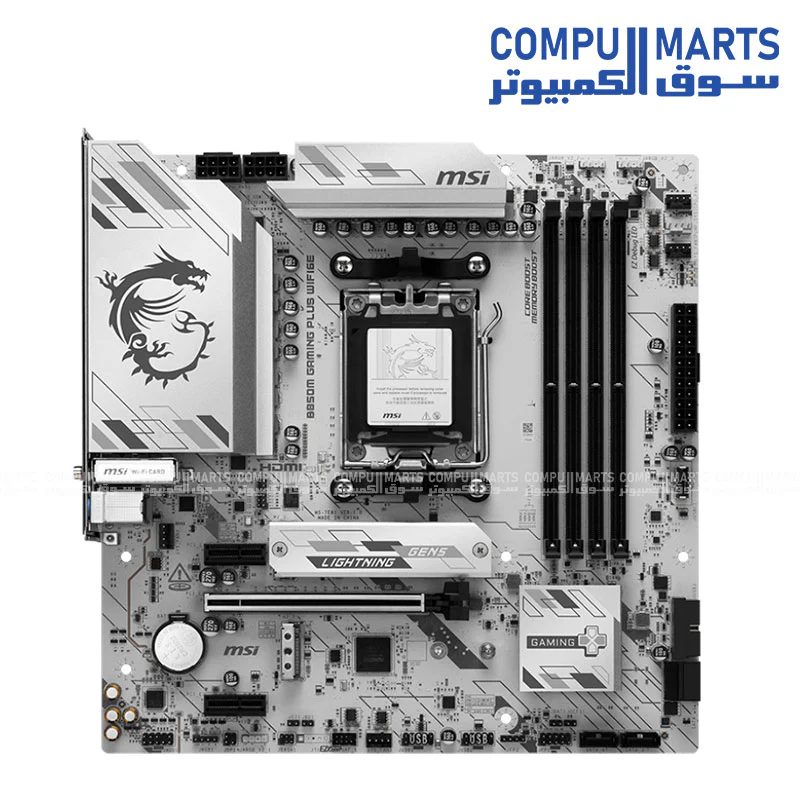

MSI B850M GAMING PLUS WIFI6E – AM5 micro‑ATX DDR5 Motherboard
| Category | Specification Details |
|---|---|
| Chipset | AMD B850 |
| CPU Support | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors (Socket AM5) |
| Memory | 4x DDR5 UDIMM, Max 256GB. Supports up to 8200+ MT/s (OC). Dual-Channel mode, AMD EXPO™ & CUDIMM support. |
| Expansion Slots | 1x PCIe 4.0 x16 (CPU), 2x PCIe 3.0 x1 (Chipset) |
| Onboard Graphics | 1x HDMI™ 2.1 (4K 60Hz), 1x DisplayPort 1.4 (4K 60Hz) - Requires Integrated Graphics |
| Storage | 2x M.2 slots (M.2_1 up to PCIe 5.0 x4; M.2_2 up to PCIe 4.0 x4) + 4x SATA 6G |
| RAID | RAID 0, 1, 10 for SATA; RAID 0, 1 for M.2 NVMe |
| USB Ports (Rear) | 1x USB 10Gbps (Type-C), 3x USB 10Gbps (Type-A), 4x USB 5Gbps (Type-A) |
| USB Ports (Front) | 1x USB 10Gbps (Type-C), 2x USB 5Gbps (Type-A), 4x USB 2.0 |
| LAN | Realtek® 8125D 2.5G LAN |
| Wireless & BT | Wi-Fi 6E (2.4/5/6GHz up to 2.4Gbps) + Bluetooth® 5.3 |
| Audio | Realtek® ALC897 7.1-Channel High Definition Audio |
| Internal I/O | 1x CPU Fan, 1x Pump_Sys Fan, 3x System Fan, 3x ARGB V2, 1x RGB, TPM 2.0 header |
| Special Features | Clear CMOS Button, Flash BIOS Button, EZ Debug LED, EZ Memory Detection LED |
| Form Factor | mATX (243.84mm x 243.84mm) |
| OS Support | Windows® 11 64-bit |
$162.23
MSI B850M GAMING PLUS WIFI6E – AM5 micro‑ATX DDR5 Motherboard—
$162.23
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Category | Specification Details |
|---|---|
| Chipset | AMD B850 |
| CPU Support | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors (Socket AM5) |
| Memory | 4x DDR5 UDIMM, Max 256GB. Supports up to 8200+ MT/s (OC). Dual-Channel mode, AMD EXPO™ & CUDIMM support. |
| Expansion Slots | 1x PCIe 4.0 x16 (CPU), 2x PCIe 3.0 x1 (Chipset) |
| Onboard Graphics | 1x HDMI™ 2.1 (4K 60Hz), 1x DisplayPort 1.4 (4K 60Hz) - Requires Integrated Graphics |
| Storage | 2x M.2 slots (M.2_1 up to PCIe 5.0 x4; M.2_2 up to PCIe 4.0 x4) + 4x SATA 6G |
| RAID | RAID 0, 1, 10 for SATA; RAID 0, 1 for M.2 NVMe |
| USB Ports (Rear) | 1x USB 10Gbps (Type-C), 3x USB 10Gbps (Type-A), 4x USB 5Gbps (Type-A) |
| USB Ports (Front) | 1x USB 10Gbps (Type-C), 2x USB 5Gbps (Type-A), 4x USB 2.0 |
| LAN | Realtek® 8125D 2.5G LAN |
| Wireless & BT | Wi-Fi 6E (2.4/5/6GHz up to 2.4Gbps) + Bluetooth® 5.3 |
| Audio | Realtek® ALC897 7.1-Channel High Definition Audio |
| Internal I/O | 1x CPU Fan, 1x Pump_Sys Fan, 3x System Fan, 3x ARGB V2, 1x RGB, TPM 2.0 header |
| Special Features | Clear CMOS Button, Flash BIOS Button, EZ Debug LED, EZ Memory Detection LED |
| Form Factor | mATX (243.84mm x 243.84mm) |
| OS Support | Windows® 11 64-bit |
