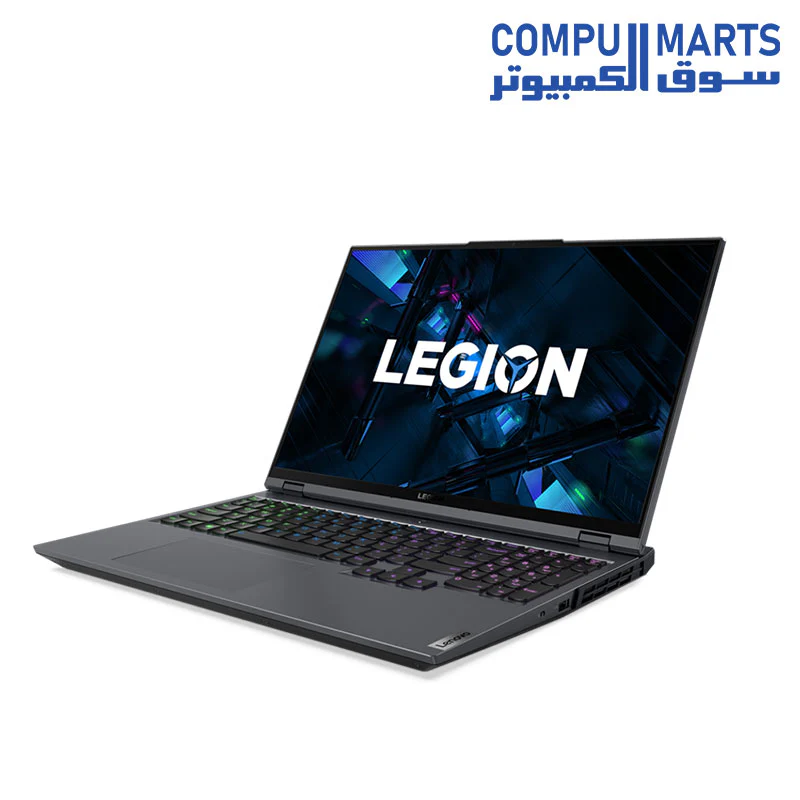

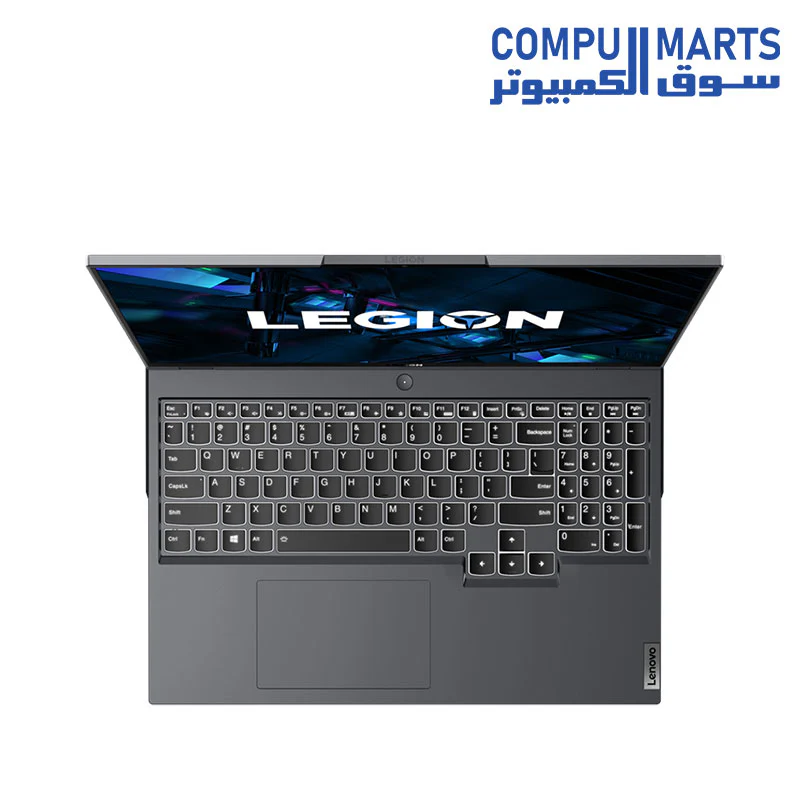

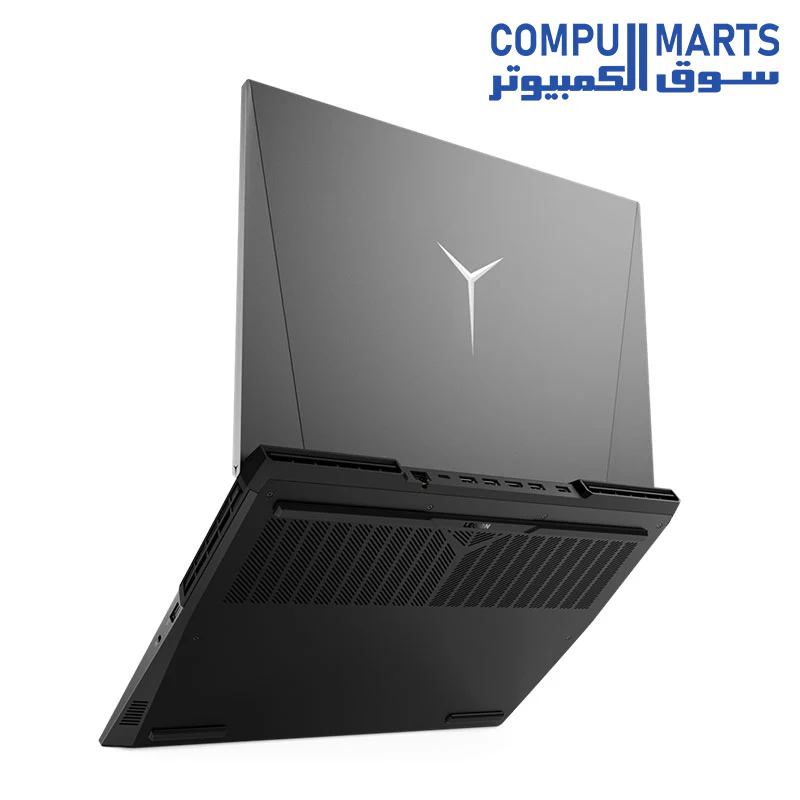

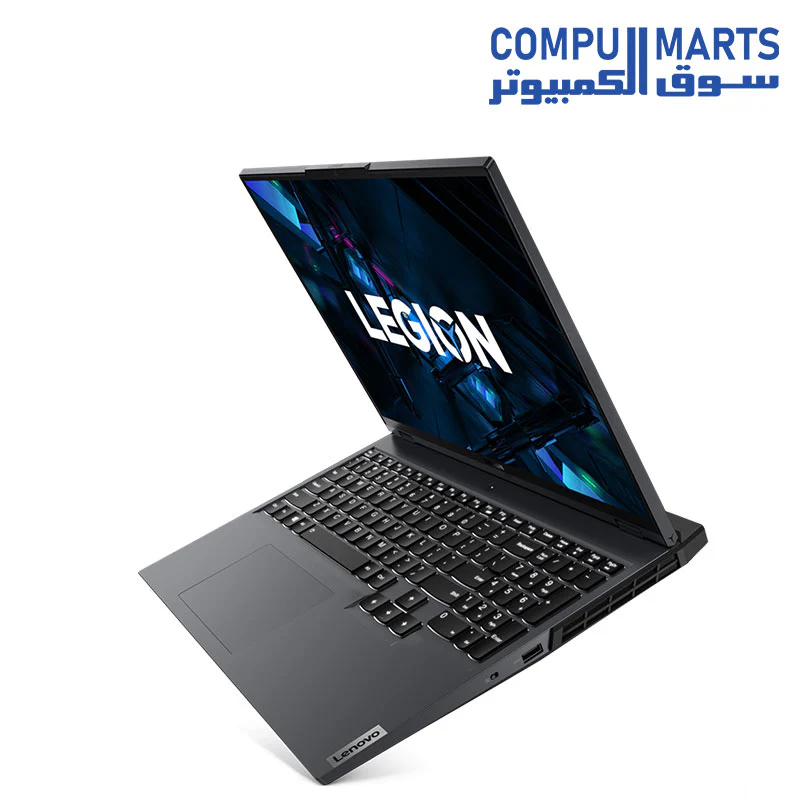

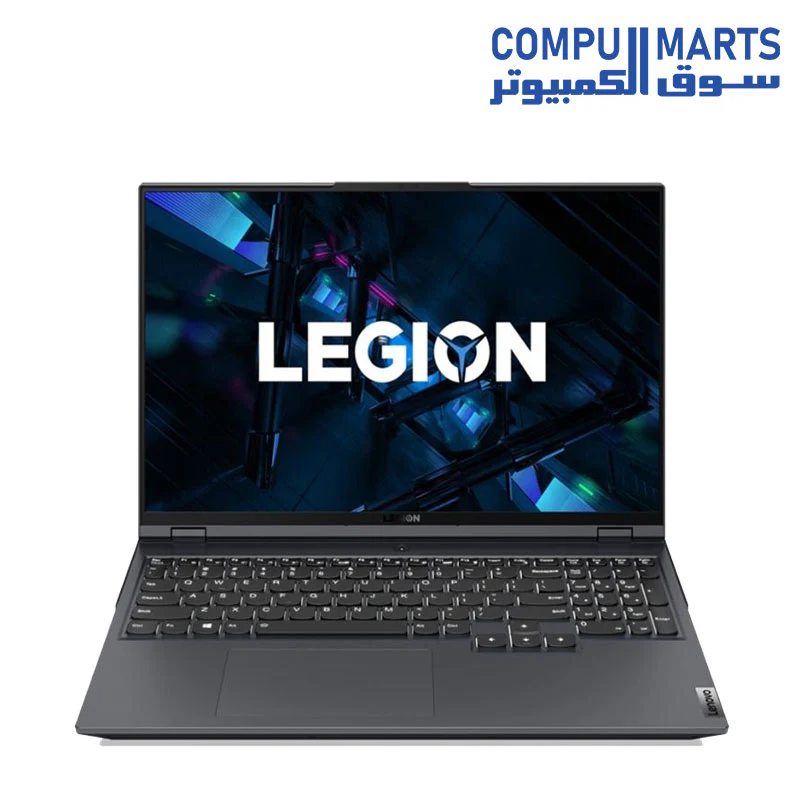

Lenovo Legion 5 Pro 16IAH7H Intel Core i7-12700H, 1TB SSD, 32GB RAM, Nvidia GeForce RTX 3070 8GB, 15.6 Inch WQXGA 165Hz, Windows 11 - Storm Grey

Lenovo Legion 5 Pro 16IAH7H Intel Core i7-12700H, 1TB SSD, 32GB RAM, Nvidia GeForce RTX 3070 8GB, 15.6 Inch WQXGA 165Hz, Windows 11 - Storm Grey



Processor	Intel Core i7-12700H (14C / 20T, 3.5GHZ Up To 4.7GHz, 24MB)
Memory	32GB DDR5 (2x 16GB)
Hard Drive	1TB SSD M.2 2280 PCIe 4.0x4 NVMe
Video Card	NVIDIA GeForce RTX 3070 8GB GDDR6
Display	16 Inch WQXGA (2560x1600), Refresh Rate 165Hz
Operating System	Windows 11
Color	Storm Grey





Processor

Intel Core i7-12700H, 14C (6P + 8E) / 20T, P-core 2.3 / 4.7GHz, E-core 1.7 / 3.5GHz, 24MB

Graphics

NVIDIA GeForce RTX 3070 8GB GDDR6, Boost Clock 1620MHz, TGP 150W

Chipset

Intel SoC Platform

Memory

2x 16GB SO-DIMM DDR5-4800

Memory Slots

Two DDR5 SO-DIMM slots, dual-channel capable

Max Memory

Up to 32GB DDR5-4800 offering

Storage

1TB SSD M.2 2280 PCIe 4.0x4 NVMe

Storage Support

Up to two drives, 2x M.2 SSD

• M.2 2242 SSD up to 512GB

• M.2 2280 SSD up to 1TB

Storage Slot

Two M.2 2280 PCIe 4.0 x4 slots

RAID Preset

None

Card Reader

None

Optical

None

Audio Chip

High Definition (HD) Audio, Realtek ALC3287 codec

Speakers

Stereo speakers, 2W x2, Nahimic Audio

Camera

HD 720p with E-shutter

Microphone

2x, Array

Battery

Integrated 80Wh

Max Battery Life

MobileMark 2018: 4.01 hr (discrete mode) or 6.55 hr (hybrid mode)

Power Adapter

300W Slim Tip (3-pin)

DESIGN

Display

16" WQXGA (2560x1600) IPS 500nits Anti-glare, 100% sRGB, 165Hz, DisplayHDR 400, Dolby Vision, G-SYNC, Low Blue Light, High Gaming Performance

Touchscreen

None

Color Calibration

Factory Color Calibration

Keyboard

4-Zone RGB Backlit, Arabic

Case Color

Storm Grey

Surface Treatment

Anodizing

Case Material

Aluminium (Top), Aluminium (Bottom)

Dimensions (WxDxH)

359.9 x 264.4 x 19.9 mm (14.17 x 10.41 x 0.78 inches)

SOFTWARE

Operating System

None

Bundled Software

None

CONNECTIVITY

Ethernet

100/1000M (RJ-45)

WLAN + Bluetooth

Wi-Fi 6E, 11ax 2x2 + BT5.1

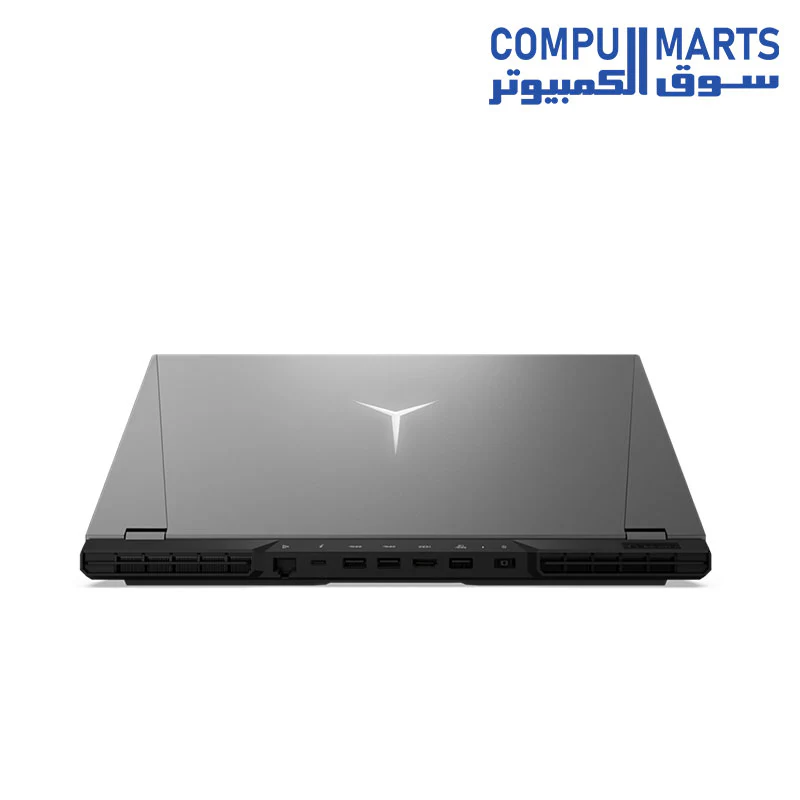

Standard Ports

2x USB 3.2 Gen 1

1x USB 3.2 Gen 1 (Always On)

1x USB-C 3.2 Gen 2 (support data transfer and DisplayPort 1.4)

1x USB-C 3.2 Gen 2 (support data transfer, Power Delivery 135W and DisplayPort 1.4)

1x Thunderbolt 4 / USB4 40Gbps (support data transfer and DisplayPort 1.4)

1x HDMI, up to 8K/60Hz

1x Ethernet (RJ-45)

1x Headphone / microphone combo jack (3.5mm)

1x Power connector
