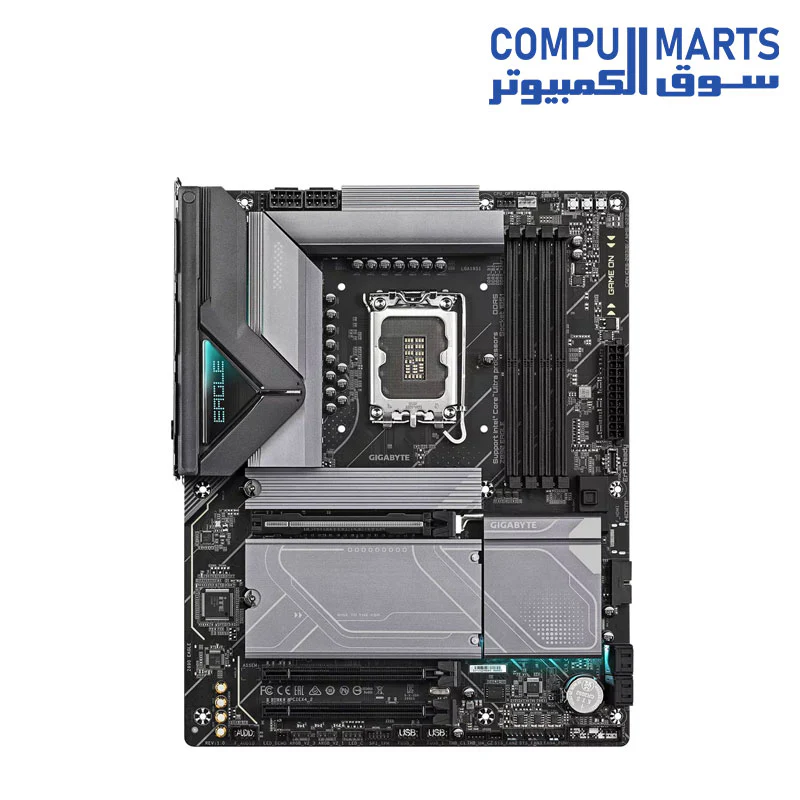

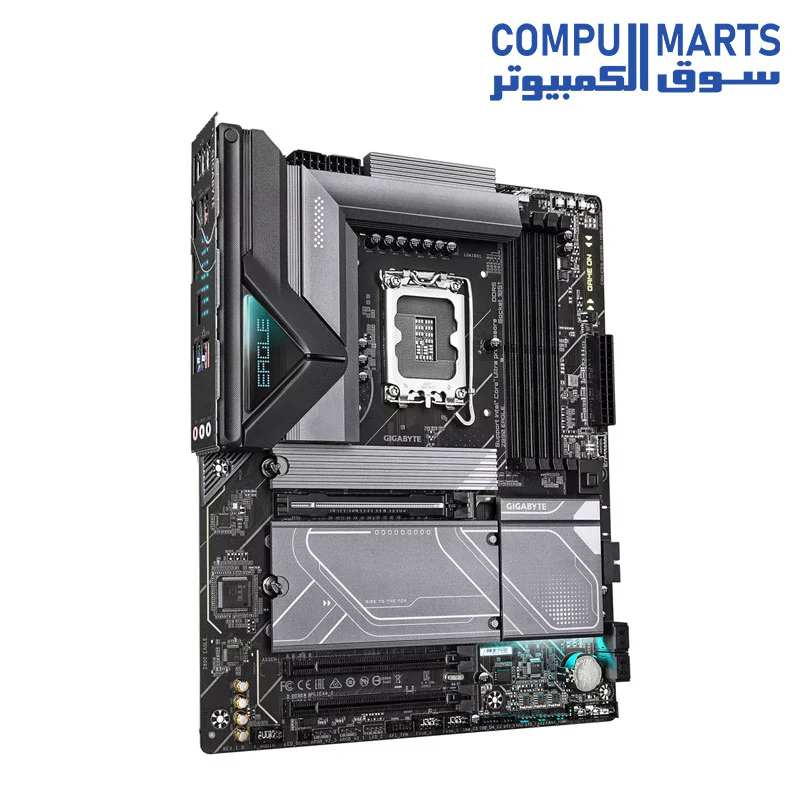

GIGABYTE Z890 EAGLE 4xDDR5 LGA1851 ATX Motherboard
| Category | Specification Details |
|---|---|
| CPU Support | LGA1851 socket: Support for Intel Core Ultra Processors |
| Chipset | Intel Z890 Express Chipset |
| Memory | Up to DDR5 8800(O.C); 4 x DIMMs (Max 256GB); Dual Channel; XMP Support |
| Graphics Output | 1 x USB4 Type-C (DP 2.1), 1 x DisplayPort 2.1 (Up to 3840x2160@144 Hz) |
| Audio | Realtek Audio CODEC; 2/4/5.1/7.1-channel High Definition Audio |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | 1 x PCIe 5.0 x16 (CPU); 2 x PCIe 4.0 x16 (running at x4) (Chipset) |
| Storage Interface | 1 x M.2 (PCIe 5.0 x4), 3 x M.2 (PCIe 4.0 x4), 4 x SATA 6Gb/s; RAID 0/1/5/10 support |

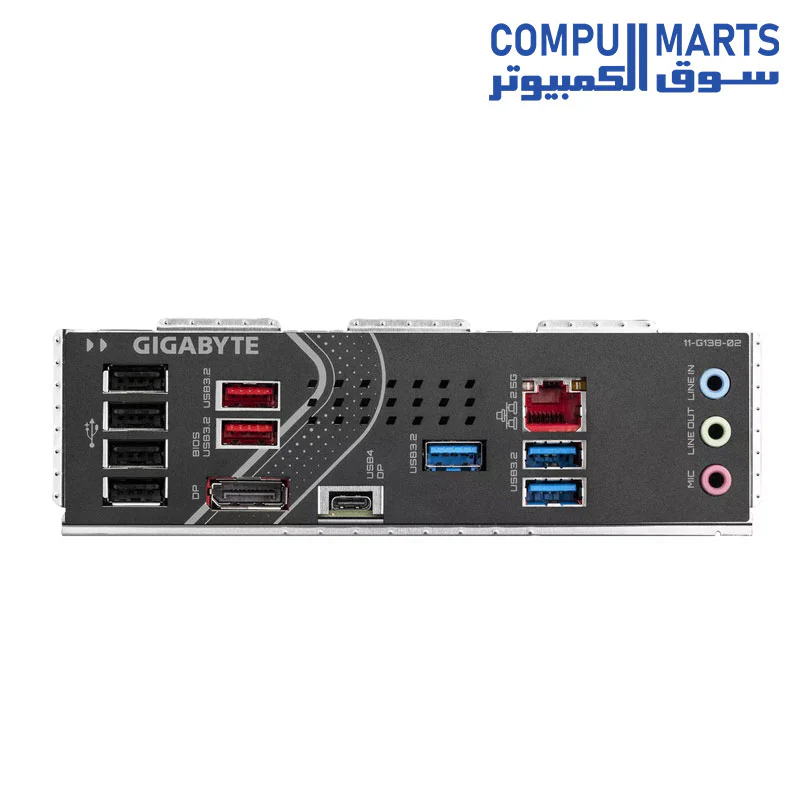

| Rear USB Ports | 1 x USB4 Type-C, 2 x USB 3.2 Gen 2 Type-A, 3 x USB 3.2 Gen 1, 4 x USB 2.0 |
| Internal I/O | Front USB-C 3.2 Gen 2, Thunderbolt™ headers, Q-Flash Plus, Power/Reset buttons |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| OS Support | Windows 11 64-bit |
$214.72
GIGABYTE Z890 EAGLE 4xDDR5 LGA1851 ATX Motherboard—
$214.72
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Category | Specification Details |
|---|---|
| CPU Support | LGA1851 socket: Support for Intel Core Ultra Processors |
| Chipset | Intel Z890 Express Chipset |
| Memory | Up to DDR5 8800(O.C); 4 x DIMMs (Max 256GB); Dual Channel; XMP Support |
| Graphics Output | 1 x USB4 Type-C (DP 2.1), 1 x DisplayPort 2.1 (Up to 3840x2160@144 Hz) |
| Audio | Realtek Audio CODEC; 2/4/5.1/7.1-channel High Definition Audio |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | 1 x PCIe 5.0 x16 (CPU); 2 x PCIe 4.0 x16 (running at x4) (Chipset) |
| Storage Interface | 1 x M.2 (PCIe 5.0 x4), 3 x M.2 (PCIe 4.0 x4), 4 x SATA 6Gb/s; RAID 0/1/5/10 support |
| Rear USB Ports | 1 x USB4 Type-C, 2 x USB 3.2 Gen 2 Type-A, 3 x USB 3.2 Gen 1, 4 x USB 2.0 |
| Internal I/O | Front USB-C 3.2 Gen 2, Thunderbolt™ headers, Q-Flash Plus, Power/Reset buttons |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| OS Support | Windows 11 64-bit |
