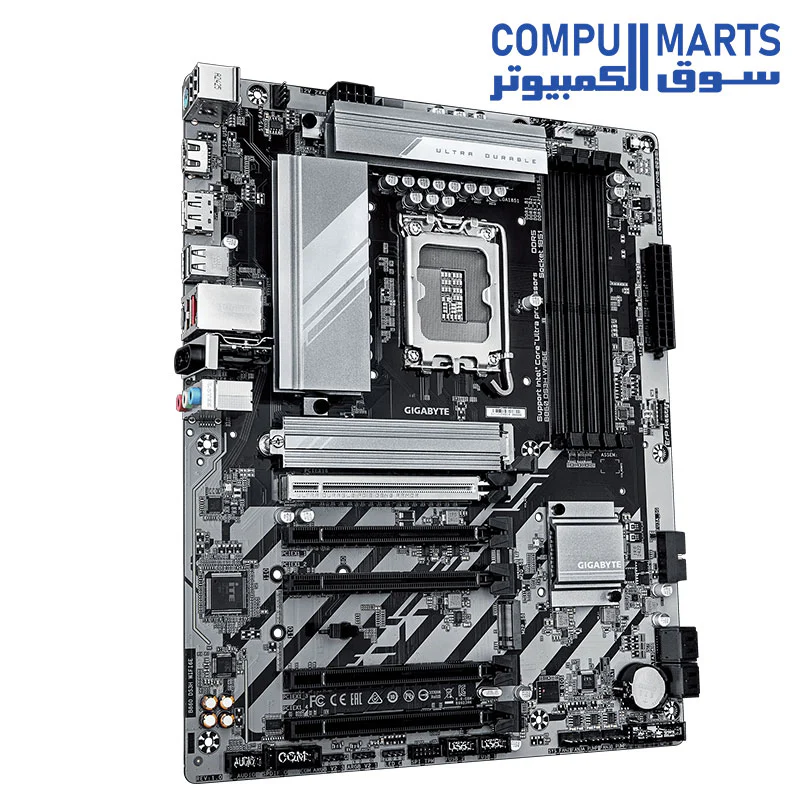

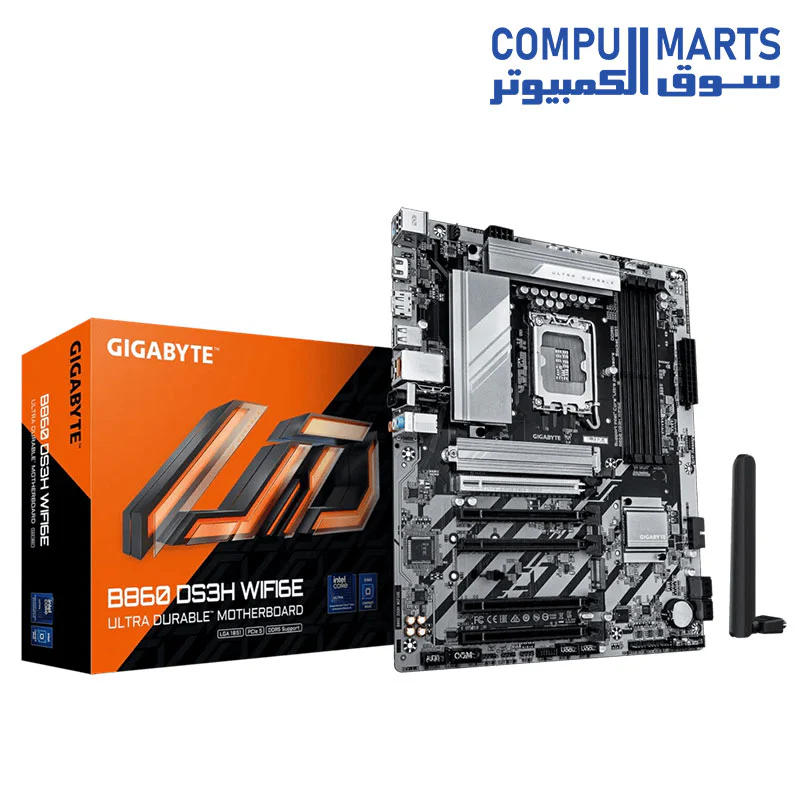

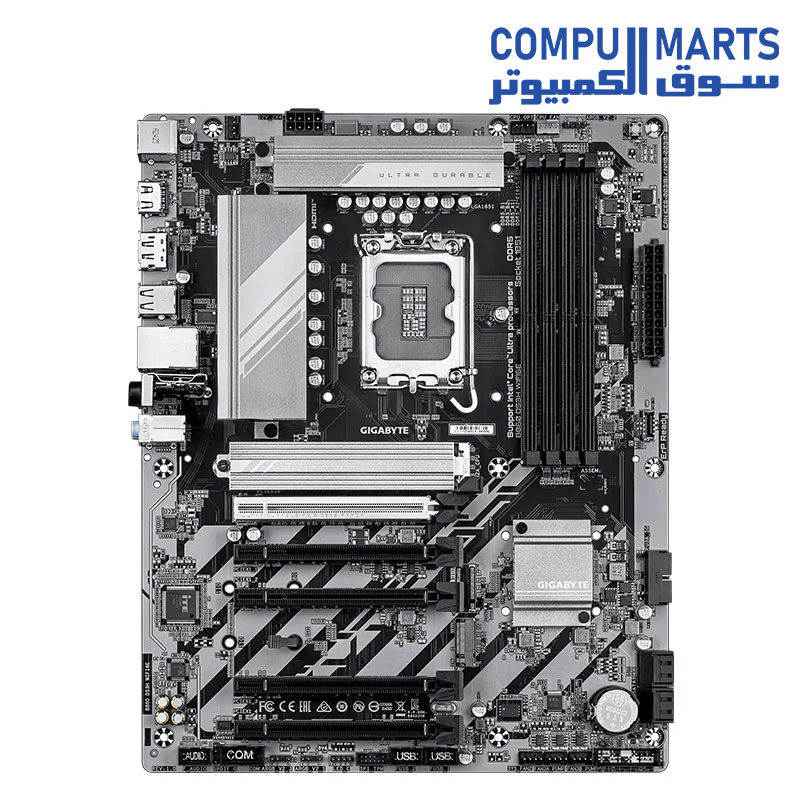

GIGABYTE B860 DS3H WiFi6E Motherboard – Intel LGA1851 – ATX – DDR5 – PCIe 5.0 – M.2 – WiFi 6E – USB 3.2 – For Intel Core Ultra Processors
| Category | Specification Details |
|---|---|
| CPU Support | LGA1851 socket, support for Intel Core Ultra Processors (L3 cache varies by CPU) |
| Chipset | Intel B860 Express Chipset |
| Memory Support | 4 x DIMM slots, DDR5 up to 9066MT/s (OC), Max 256GB. Supports XMP and ECC (non-ECC mode) |
| Graphics Output | HDMI 2.1 (4K @ 60Hz), DisplayPort 2.1 (4K @ 144Hz) |
| Audio | Realtek Audio CODEC, 7.1-channel High Definition Audio, S/PDIF Out support |
| Networking | 2.5GbE LAN (Realtek), Wi-Fi 6E, and Bluetooth 5.3 |
| Expansion Slots | 1 x PCIe 5.0 x16 (GPU/NVMe), 4 x PCIe 4.0 x1 |
| Storage Interface | 1 x M.2 PCIe 5.0 x4 (CPU), 1 x M.2 PCIe 4.0 x4 (Chipset), 4 x SATA 6Gb/s (RAID 0/1/5/10) |
| USB Ports | 1 x USB-C 3.2 Gen 2x2, 1 x USB-A 3.2 Gen 2, 3 x USB 3.2 Gen 1, 8 x USB 2.0/1.1 |
| Internal I/O | 24-pin/8-pin power, 2x M.2, 4x SATA, 3x ARGB Gen2, 1x RGB header, multiple fan/pump headers |

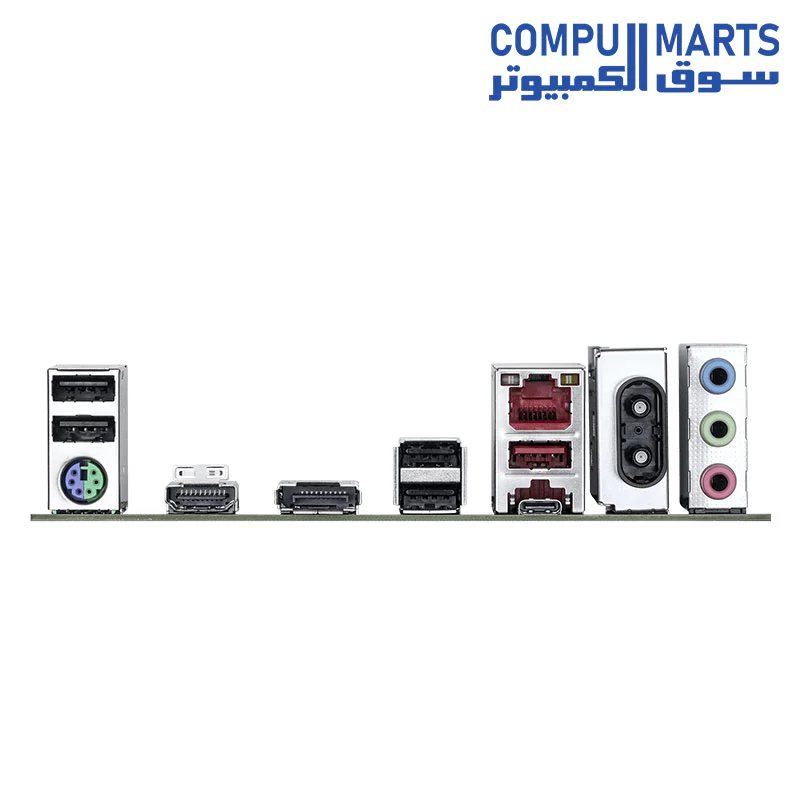

| Rear Panel | HDMI, DP, USB-C 2x2, USB-A Gen 2, 4x USB 2.0, RJ-45, Wi-Fi antenna, Audio jacks |
| Software & BIOS | AMI UEFI BIOS, Q-Flash Plus, Windows 11/10 (64-bit) support |
| Form Factor | ATX Form Factor (30.5 cm x 24.4 cm) |
$49.82
Original: $166.05
-70%GIGABYTE B860 DS3H WiFi6E Motherboard – Intel LGA1851 – ATX – DDR5 – PCIe 5.0 – M.2 – WiFi 6E – USB 3.2 – For Intel Core Ultra Processors—
$166.05
$49.82Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Category | Specification Details |
|---|---|
| CPU Support | LGA1851 socket, support for Intel Core Ultra Processors (L3 cache varies by CPU) |
| Chipset | Intel B860 Express Chipset |
| Memory Support | 4 x DIMM slots, DDR5 up to 9066MT/s (OC), Max 256GB. Supports XMP and ECC (non-ECC mode) |
| Graphics Output | HDMI 2.1 (4K @ 60Hz), DisplayPort 2.1 (4K @ 144Hz) |
| Audio | Realtek Audio CODEC, 7.1-channel High Definition Audio, S/PDIF Out support |
| Networking | 2.5GbE LAN (Realtek), Wi-Fi 6E, and Bluetooth 5.3 |
| Expansion Slots | 1 x PCIe 5.0 x16 (GPU/NVMe), 4 x PCIe 4.0 x1 |
| Storage Interface | 1 x M.2 PCIe 5.0 x4 (CPU), 1 x M.2 PCIe 4.0 x4 (Chipset), 4 x SATA 6Gb/s (RAID 0/1/5/10) |
| USB Ports | 1 x USB-C 3.2 Gen 2x2, 1 x USB-A 3.2 Gen 2, 3 x USB 3.2 Gen 1, 8 x USB 2.0/1.1 |
| Internal I/O | 24-pin/8-pin power, 2x M.2, 4x SATA, 3x ARGB Gen2, 1x RGB header, multiple fan/pump headers |
| Rear Panel | HDMI, DP, USB-C 2x2, USB-A Gen 2, 4x USB 2.0, RJ-45, Wi-Fi antenna, Audio jacks |
| Software & BIOS | AMI UEFI BIOS, Q-Flash Plus, Windows 11/10 (64-bit) support |
| Form Factor | ATX Form Factor (30.5 cm x 24.4 cm) |
