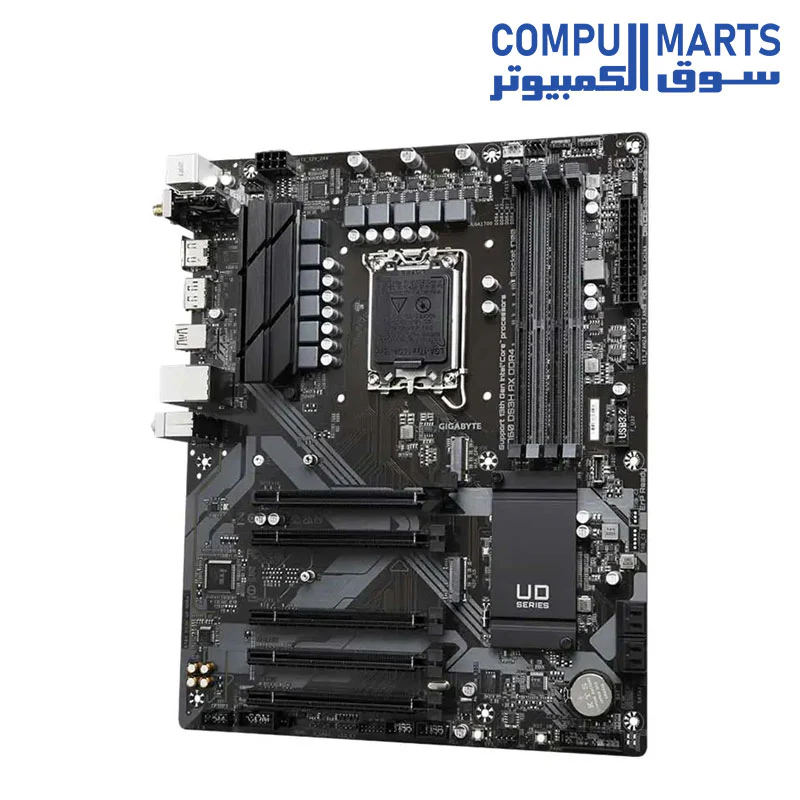

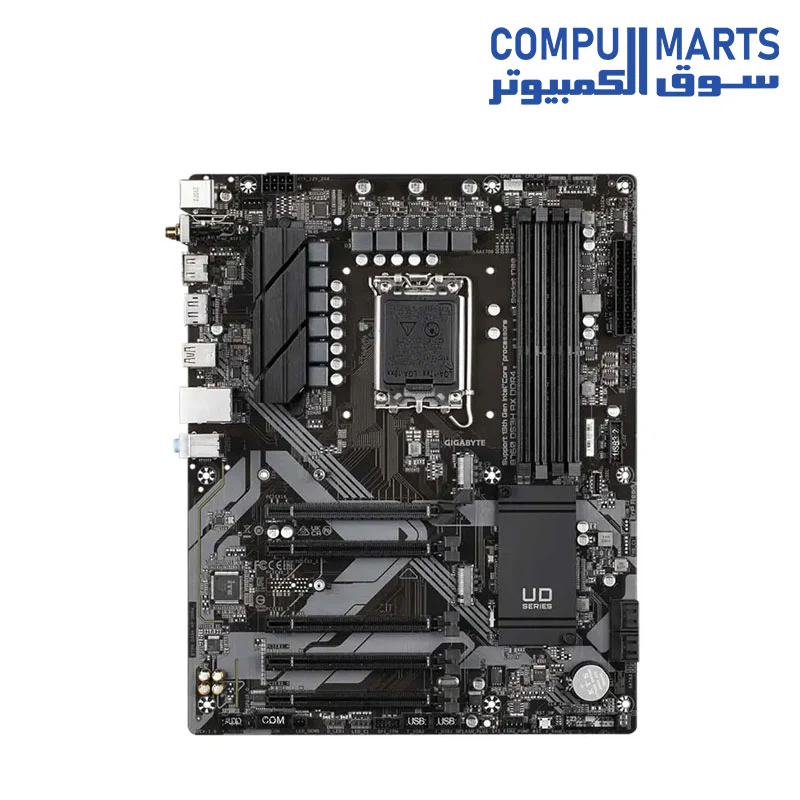

GIGABYTE B760 DS3H AX Motherboard – Intel LGA1700 – ATX – DDR4 – PCIe 4.0 – M.2 – WiFi 6 – Bluetooth – USB 3.2 – Supports Intel 14th / 13th / 12th Gen
| Category | Specification Details |
|---|---|
| CPU Support | LGA1700 socket: Support for 13th and 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| Chipset | Intel® B760 Express Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR4 up to 5333(O.C.), Dual Channel, XMP Support |
| Onboard Graphics | 1 x HDMI 2.0 (4K@60Hz), 1 x DisplayPort 1.2 (4K@60Hz) |
| Audio | Realtek® Audio CODEC, 2/4/5.1/7.1-channel, S/PDIF Out support |
| LAN | Realtek® GbE LAN chip (1 Gbps) |
| Wireless & Bluetooth | AMD Wi-Fi 6E RZ608 (802.11ax) 2.4/5/6 GHz, Bluetooth 5.2 |
| Expansion Slots | 1 x PCIe 4.0 x16 (CPU), 4 x PCIe 3.0 x1 (Chipset) |
| Storage Interface | 2 x M.2 PCIe 4.0 x4/x2, 4 x SATA 6Gb/s (RAID 0, 1, 5, 10) |
| Rear USB | 1 x USB-C (3.2 Gen 2x2), 1 x USB 3.2 Gen 2 (Red), 4 x USB 2.0/1.1 |
| Internal I/O | 1 x USB-C (3.2 Gen 1), 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers, 2 x Addressable LED, 2 x RGB LED |
| Special Features | Q-Flash Plus, Smart Fan 6, EZ-Latch PCIe Slot, Hybrid 8+2+1 Phases Digital VRM |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
$127.88
GIGABYTE B760 DS3H AX Motherboard – Intel LGA1700 – ATX – DDR4 – PCIe 4.0 – M.2 – WiFi 6 – Bluetooth – USB 3.2 – Supports Intel 14th / 13th / 12th Gen—
$127.88
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Category | Specification Details |
|---|---|
| CPU Support | LGA1700 socket: Support for 13th and 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| Chipset | Intel® B760 Express Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR4 up to 5333(O.C.), Dual Channel, XMP Support |
| Onboard Graphics | 1 x HDMI 2.0 (4K@60Hz), 1 x DisplayPort 1.2 (4K@60Hz) |
| Audio | Realtek® Audio CODEC, 2/4/5.1/7.1-channel, S/PDIF Out support |
| LAN | Realtek® GbE LAN chip (1 Gbps) |
| Wireless & Bluetooth | AMD Wi-Fi 6E RZ608 (802.11ax) 2.4/5/6 GHz, Bluetooth 5.2 |
| Expansion Slots | 1 x PCIe 4.0 x16 (CPU), 4 x PCIe 3.0 x1 (Chipset) |
| Storage Interface | 2 x M.2 PCIe 4.0 x4/x2, 4 x SATA 6Gb/s (RAID 0, 1, 5, 10) |
| Rear USB | 1 x USB-C (3.2 Gen 2x2), 1 x USB 3.2 Gen 2 (Red), 4 x USB 2.0/1.1 |
| Internal I/O | 1 x USB-C (3.2 Gen 1), 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers, 2 x Addressable LED, 2 x RGB LED |
| Special Features | Q-Flash Plus, Smart Fan 6, EZ-Latch PCIe Slot, Hybrid 8+2+1 Phases Digital VRM |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
