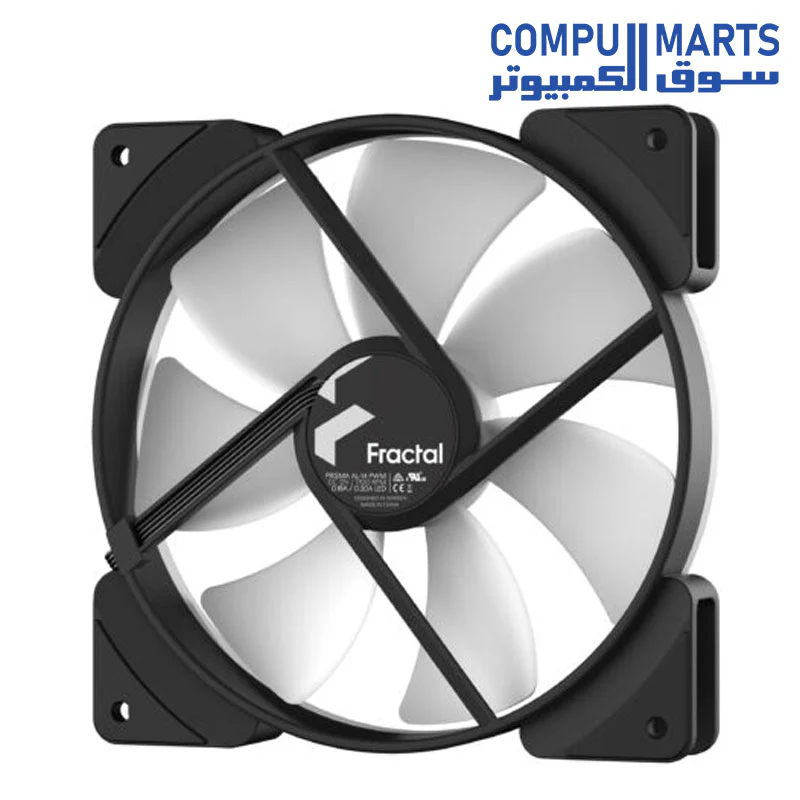

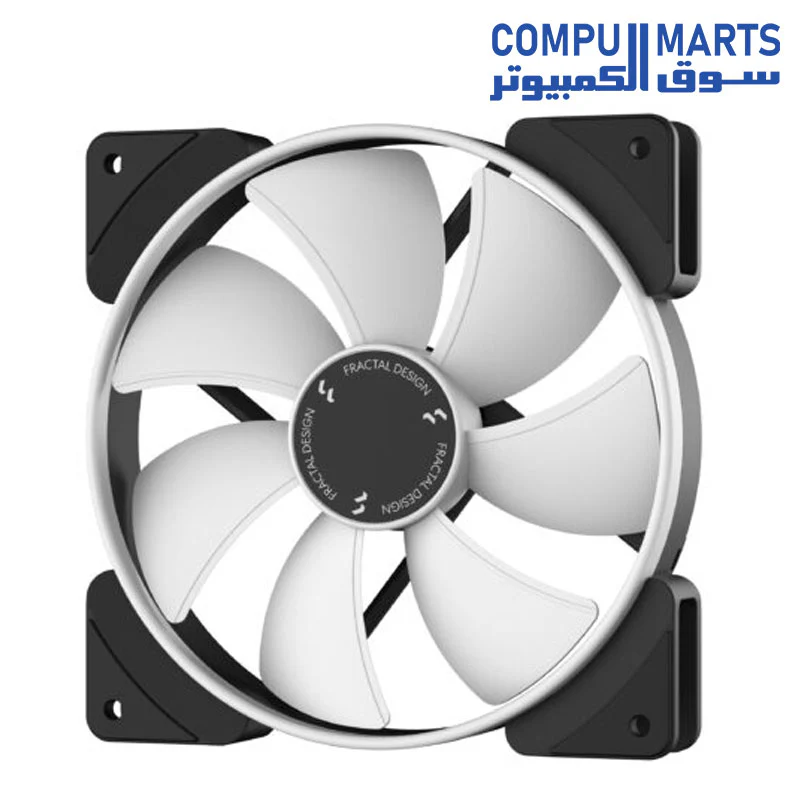

Fractal Design Prisma AL-12 – 120mm Silent Computer Fan ARGB

Fractal Design Prisma AL-12 – 120mm Silent Computer Fan ARGB

Fractal Design Prisma AL-12 – 120mm Silent Computer Fan ARGB





  • Size

    120 x 120 x 25 mm

  • Screw hole pattern

    105 x 105 mm

  • Fan connector

    4-pin PWM

  • RGB connector

    3-pin 5V addressable RGB

  • Bearing

    LLS

  • Number of blades

    7

  • Rotational speed

    500 – 2000 RPM

  • Noise level

    32.7 dB(A)

  • Airflow (CFM)

    85.71 CFM

  • Airflow (m3/h)

    145.62 m3/h

  • Static pressure

    2.78 mmH2O

  • Fan input power

    2.16 W

  • Fan max input current

    0.18 A

  • Fan input voltage

    12 V

  • Fan starting voltage

    7 V

  • LED input power

    1.50 W

  • LED max input current

    0.30 A

  • LED input voltage

    5 V

  • Low (0-20%) PWM speed

    500 RPM

  • Low PWM noise level

    14.8 dB(A)

  • Low PWM airflow

    20.68 CFM

  • Low PWM static pressure

    0.36 mmH2O

  • MTBF

    100,000 hours

  • Fan weight

    169 g

  • Cable length

    500 mm

  • Cable type

    Black sleeved

  • Package contents
    Prisma AL-12 PWM 140 mm fan, 4 x fan screws / 3x Prisma AL-12 PWM 140 mm fan, 12x fan screws (3-pack)
  • Package weight
    212 g / 592 g (3-pack)
  • Package dimensions (Including hanging tab)
    182 x 122 x 30 mm / 202 x 122 x 80 mm (3-pack)
  • Package dimensions (Excluding hanging tab)
    147 x 122 x 30 mm / 157 x 122 x 80 mm (3-pack)
  • EAN
    7340172701590 / 7340172701613 (3-pack)
  • UPC
    843276101596 / 843276101619 (3-pack)JAN
  • 4537694264167 / 4537694264211 (3-pack)
  • Product code
    FD-FAN-PRI-AL12-PWM / FD-FAN-PRI-AL12-PWM-3P (3-pack),



$13.74

Original: $45.79

-70%
Fractal Design Prisma AL-12 – 120mm Silent Computer Fan ARGB—

$45.79

$13.74

Product Information

Shipping & Returns

Description

Fractal Design Prisma AL-12 – 120mm Silent Computer Fan ARGB





  • Size

    120 x 120 x 25 mm

  • Screw hole pattern

    105 x 105 mm

  • Fan connector

    4-pin PWM

  • RGB connector

    3-pin 5V addressable RGB

  • Bearing

    LLS

  • Number of blades

    7

  • Rotational speed

    500 – 2000 RPM

  • Noise level

    32.7 dB(A)

  • Airflow (CFM)

    85.71 CFM

  • Airflow (m3/h)

    145.62 m3/h

  • Static pressure

    2.78 mmH2O

  • Fan input power

    2.16 W

  • Fan max input current

    0.18 A

  • Fan input voltage

    12 V

  • Fan starting voltage

    7 V

  • LED input power

    1.50 W

  • LED max input current

    0.30 A

  • LED input voltage

    5 V

  • Low (0-20%) PWM speed

    500 RPM

  • Low PWM noise level

    14.8 dB(A)

  • Low PWM airflow

    20.68 CFM

  • Low PWM static pressure

    0.36 mmH2O

  • MTBF

    100,000 hours

  • Fan weight

    169 g

  • Cable length

    500 mm

  • Cable type

    Black sleeved

  • Package contents
    Prisma AL-12 PWM 140 mm fan, 4 x fan screws / 3x Prisma AL-12 PWM 140 mm fan, 12x fan screws (3-pack)
  • Package weight
    212 g / 592 g (3-pack)
  • Package dimensions (Including hanging tab)
    182 x 122 x 30 mm / 202 x 122 x 80 mm (3-pack)
  • Package dimensions (Excluding hanging tab)
    147 x 122 x 30 mm / 157 x 122 x 80 mm (3-pack)
  • EAN
    7340172701590 / 7340172701613 (3-pack)
  • UPC
    843276101596 / 843276101619 (3-pack)JAN
  • 4537694264167 / 4537694264211 (3-pack)
  • Product code
    FD-FAN-PRI-AL12-PWM / FD-FAN-PRI-AL12-PWM-3P (3-pack),
