Name: Eaton UPS 9SX 3000i 2U Rack
Brand: Compumarts Egypt
SKU: eaton-ups-9sx-3000i-2u-rack
Availability: InStock

Home Store

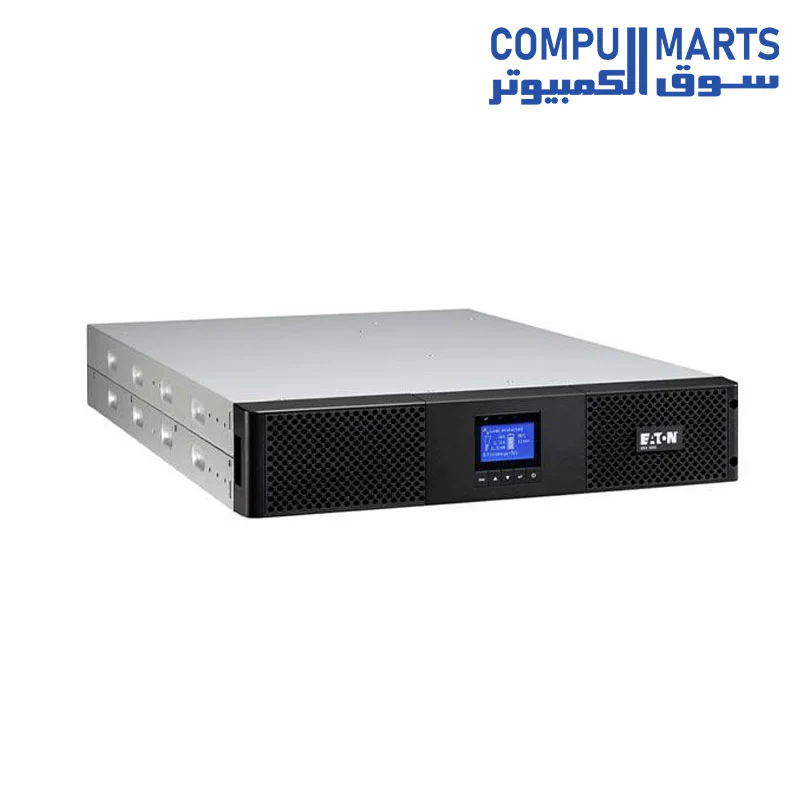

Eaton UPS 9SX 3000i 2U Rack

Eaton OnLine 9SX UPS, 3000 VA, 2700 W, Input: C20, Outputs: (8) C13, (1) C19, Rack, 2U
Provides more real power (watts) to protect more equipment with a 0.9 power factor, Advanced Battery Management (ABM) technology to increase battery lifetime, Next-generation graphical LCD display, Meter energy consumption (at the UPS level), Hot-swappable batteries, Long backup time with up to 4 optional EBM, Load segment control enables prioritized shutdowns of non-essential equipment to maximize battery runtime for critical devices

Rating VA:3000
Rating Watt:2700
P.F:0.9
No. Of Outlets:(8) C13, (1) C19
LCD: Yes
Smart USB communication: Yes
Network Card: Yes
Free Management Software: ipp
Battery Charging Technology: ABM

PRODUCT NAME	Eaton 9SX UPS
CATALOG NUMBER	9SX3000IR
UPC	743172091147
PRODUCT LENGTH/DEPTH	608 mm
PRODUCT HEIGHT	86.5 mm
PRODUCT WIDTH	438 mm
PRODUCT WEIGHT	26.5 kg

COMPLIANCES	CE Marked TUV cULus Listed CSA 22.2 FCC part 15 Class B CISPR22 Class B
CERTIFICATIONS	IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 CE cULus Listed EAC

BATTERY TYPE	Sealed, lead-acid
RUNTIME GRAPH	Check the graph above
BATTERY REPLACEMENT	Hot-swappable internal batteries and extended battery modules (EBMs)
BATTERY QUANTITY	6
BATTERY MANAGEMENT	ABM & Temperature compensated charging method (user selectable) Automatic battery test Deep discharge protection Automatic recognition of external battery units
BATTERY RATING	12 V / 9 Ah
EXTENDED BATTERY CAPABILITY	Yes

RECEPTACLE	(8) C13, (1) C19
VOLTAGE	230V
WATTAGE	2700 W
OUTPUT POWER FACTOR	0.9
OUTPUT VOLTAGE RANGE	200/208/220/230/240 V +/- 2%
OUTPUT WAVEFORM	Sine wave
OUTPUT NOMINAL VOLTAGE	230V default (200/208/220/230/240V)
VOLTAGE DISTORTION OUTPUT (LINEAR LOAD) - MAX	3
FEED TYPE	1
TOPOLOGY	Online/Double-conversion
VA RATING	3000 VA

INPUT CONNECTION	C20
INPUT NOMINAL VOLTAGE	230V default (200/208/220/230/240/250V)
NOMINAL FREQUENCY	50/60 Hz
INPUT POWER FACTOR	>.99
INPUT CORD LENGTH	1.8m
INPUT VOLTAGE RANGE	200-276 Vac without derating (up to 140-276 Vac with derating)
INPUT FREQUENCY RANGE	40-70 Hz

INCLUDES NETWORK CARD	No
COMMUNICATION	USB port (HID compliant) Serial port (RS232) Mini-terminal block for remote power off Mini-terminal block for output relay Dry contacts (2 outputs, 1 input, optocoupler, DB9)
ETHERNET INTERFACE	No
USER INTERFACE	Multilingual graphical LCD display
POTENTIAL FREE SWITCH CONTACT	Yes
EXPANSION SLOTS	One slot for optional communication card
SOFTWARE COMPATIBILITY	Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
TYPE OF INTERFACE	Other

ALTITUDE	3000 m
NOISE LEVEL	45 dB at 1 meter
TEMPERATURE RANGE	0° to 40°C (32° to 104°F)
RELATIVE HUMIDITY	0-96% non-condensing

CONSTRUCTION TYPE	482.6 mm (19 inch) device
PACKAGE CONTENTS	UPS Input cable (2) IEC-IEC output cables USB cable Serial cable (2) brackets for 19’ mounting (2) Rack-mounting kit Safety instructions Quickstart guide
PHASE (OUTPUT)	1
INTERNAL BYPASS	Yes
AUTO SHUTDOWN FUNCTION	Yes
COLOR	Black
EFFICIENCY	92
RACK MOUNTING KIT	Yes
PHASE (INPUT)	1
HOT SWAP POWER	No

CONSTRUCTION TYPE	482.6 mm (19 inch) device
PACKAGE CONTENTS	UPS Input cable (2) IEC-IEC output cables USB cable Serial cable (2) brackets for 19’ mounting (2) Rack-mounting kit Safety instructions Quickstart guide
PHASE (OUTPUT)	1
INTERNAL BYPASS	Yes
AUTO SHUTDOWN FUNCTION	Yes
COLOR	Black
EFFICIENCY	92
RACK MOUNTING KIT	Yes
PHASE (INPUT)	1
HOT SWAP POWER	No
