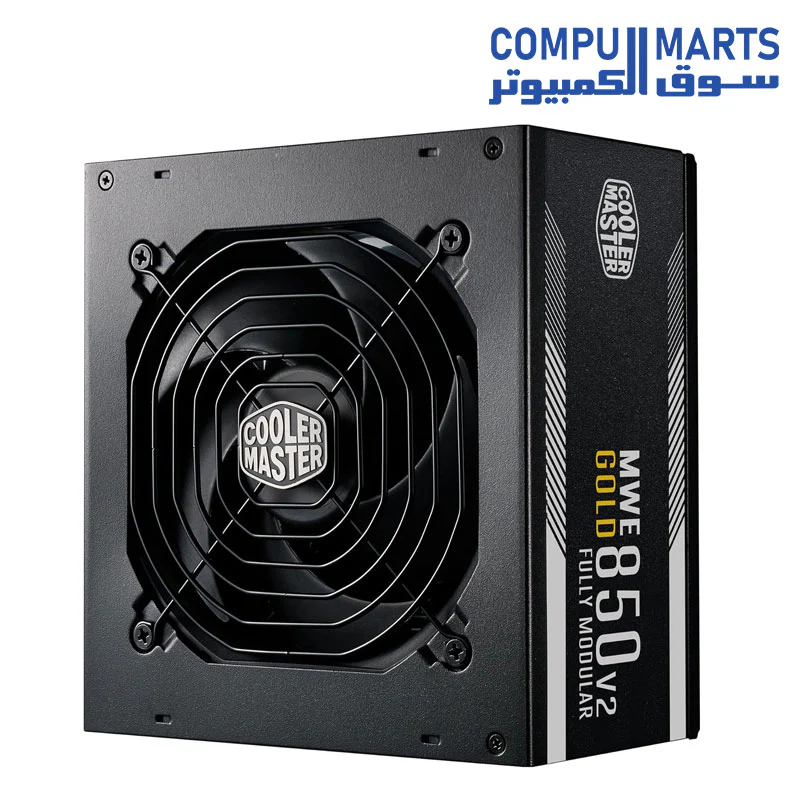

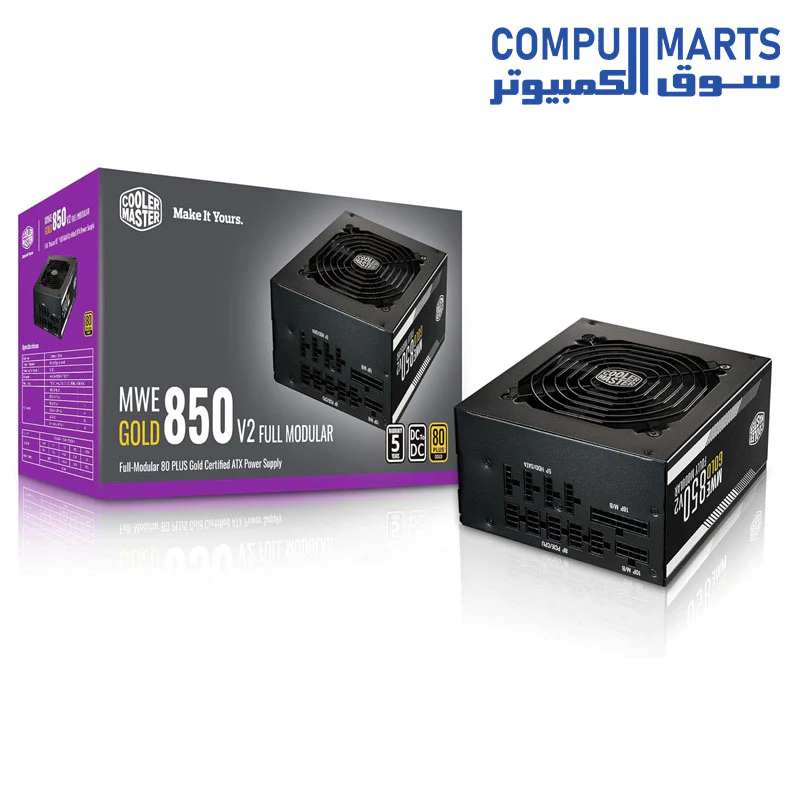

Cooler Master MWE Gold 850 V2 Full Modular, 850W, 80+ Gold Efficiency ATX 3.0 PCIE 5.0 12 VHPWR

Cooler Master MWE Gold 850 V2 Full Modular, 850W, 80+ Gold Efficiency



Model Name	MWE Gold 850 V2
Brand	Cooler Master
Compatible Devices	Personal Computer
Connector Type	ATX, EPS, PCI Express, SATA
Output Wattage	850
Wattage	750 watts
Cooling Method	Air
Item dimensions L x W x H	3.94 x 4.92 x 2.5 inches
Item Weight	6.1 Pounds
Power Supply Design	Full Modular



Category : Above 750W

Modular : Fully Modular

PFC : Active PFC

ErP 2014 Lot 3 : Yes

ATX 24 Pin Connectors : 1

EPS 4+4 Pin Connectors : 1

EPS 8 Pin Connector : 1

Noise Level @ 20% : 0 dBA

Power Good Signal : 100 - 150 ms

80 PLUS Rating : 80 PLUS Gold

Fan Size : 120mm

MTBF : >100,000 Hours

Input Frequency : 47-63Hz

80 Plus : Gold

Fan Bearing : HDB

Operating Temperature : 0-50°C

SATA Connectors : 12

PCI-e 6+2 Pin Connectors : 4

Input Voltage : 100-240V

Noise Level @ 100% : 25.9 dBA

Series : MWE Gold Series

Peripheral 4 Pin Connectors : 4

Fan Speed : 1500 RPM

Protections : OVP

Protections : OPP

ATX Version : ATX 12V Ver. 2.41

Protections : SCP

Protections : UVP

Protections : OTP

Protections : OCP

Noise Level @ 50% : 17.8 dBA

Hold Up Time : >16ms at 100% Load

Dimensions (L x W x H) : 160 x 150 x 86 mm

Regulatory : CCC

Regulatory : CE

Input Current : 12-6A

Regulatory : RCM

Regulatory : EAC

Efficiency : ≥90% @ Typical Load

Regulatory : cTUVus

Regulatory : FCC

Regulatory : BSMI

Regulatory : TUV

Regulatory : BIS

Regulatory : UKCA
