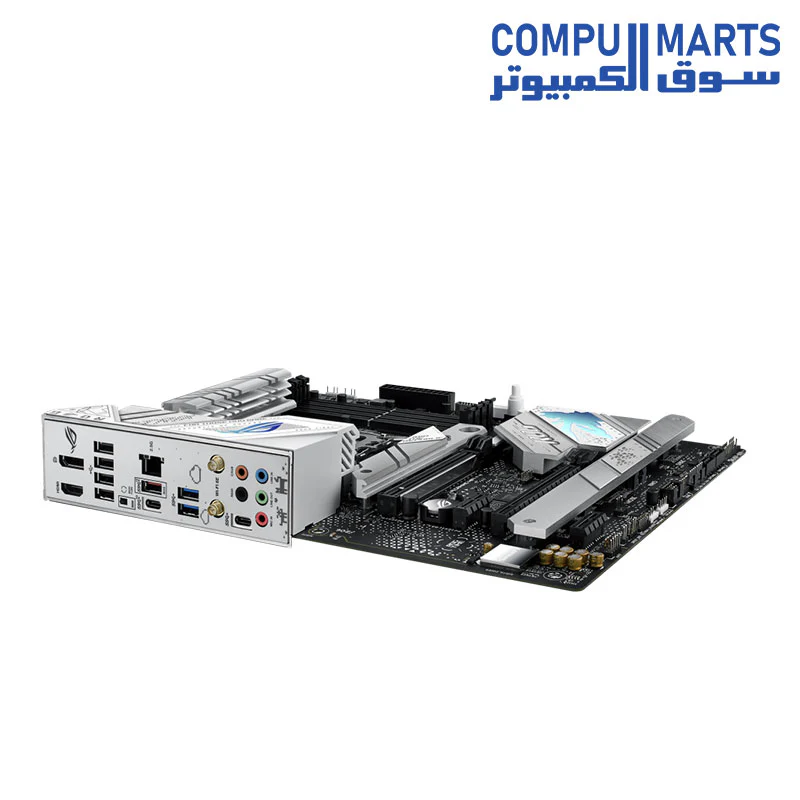

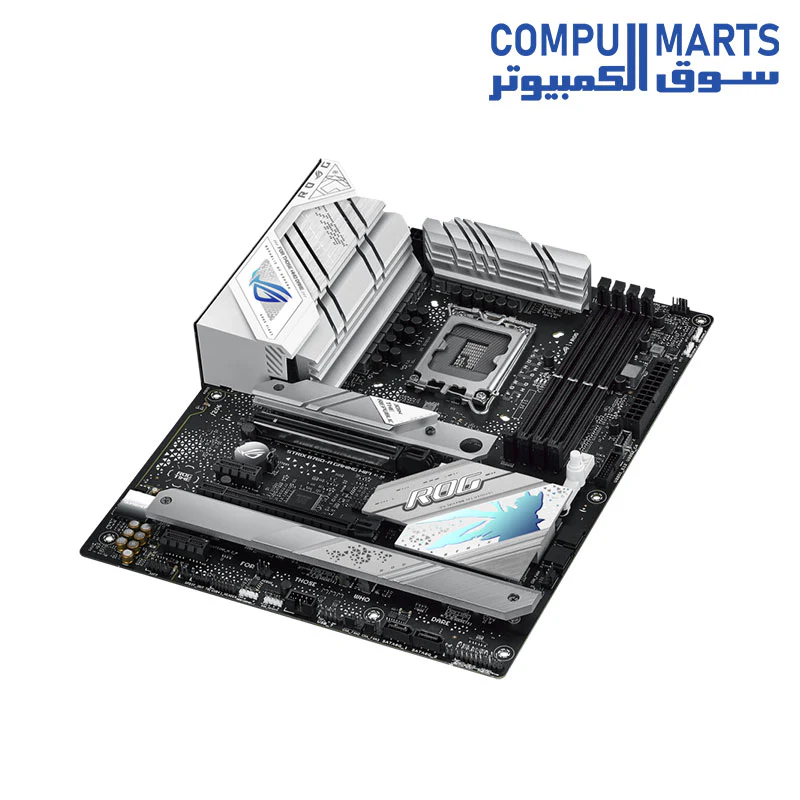

ASUS ROG STRIX B760-A GAMING WIFI Motherboard
| Category | Specification Details |
|---|---|
| CPU Support | Intel® Socket LGA1700 for 13th & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| Chipset | Intel® B760 Chipset |
| Memory | 4 x DIMM, Max. 192GB, DDR5 up to 7800+(OC), Dual Channel, OptiMem II, XMP Support |
| Graphics | 1 x DisplayPort 1.4, 1 x HDMI® 2.1 |
| Expansion Slots | 1 x PCIe 5.0 x16 (CPU), 1 x PCIe 3.0 x16 (at x4), 2 x PCIe 3.0 x1 |
| Storage | 3 x M.2 slots (PCIe 4.0 x4) + 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Intel® 2.5Gb Ethernet with ASUS LANGuard |
| Wireless & BT | Wi-Fi 6E (2.4/5/6GHz), Bluetooth® v5.3 |
| Rear USB Ports | 1 x USB 3.2 Gen 2x2 Type-C®, 1 x USB 3.2 Gen 2, 3 x USB 3.2 Gen 1, 4 x USB 2.0 |
| Audio | ROG SupremeFX 7.1 ALC4080, Savitech SV3H712 AMP, 120 dB SNR Playback |
| Special Features | PCIe Slot Q-Release, M.2 Q-Latch, BIOS FlashBack™, Aura Sync RGB |
| Form Factor | ATX (12 inch x 9.6 inch) |
$229.03
ASUS ROG STRIX B760-A GAMING WIFI Motherboard—
$229.03
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Category | Specification Details |
|---|---|
| CPU Support | Intel® Socket LGA1700 for 13th & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| Chipset | Intel® B760 Chipset |
| Memory | 4 x DIMM, Max. 192GB, DDR5 up to 7800+(OC), Dual Channel, OptiMem II, XMP Support |
| Graphics | 1 x DisplayPort 1.4, 1 x HDMI® 2.1 |
| Expansion Slots | 1 x PCIe 5.0 x16 (CPU), 1 x PCIe 3.0 x16 (at x4), 2 x PCIe 3.0 x1 |
| Storage | 3 x M.2 slots (PCIe 4.0 x4) + 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Intel® 2.5Gb Ethernet with ASUS LANGuard |
| Wireless & BT | Wi-Fi 6E (2.4/5/6GHz), Bluetooth® v5.3 |
| Rear USB Ports | 1 x USB 3.2 Gen 2x2 Type-C®, 1 x USB 3.2 Gen 2, 3 x USB 3.2 Gen 1, 4 x USB 2.0 |
| Audio | ROG SupremeFX 7.1 ALC4080, Savitech SV3H712 AMP, 120 dB SNR Playback |
| Special Features | PCIe Slot Q-Release, M.2 Q-Latch, BIOS FlashBack™, Aura Sync RGB |
| Form Factor | ATX (12 inch x 9.6 inch) |
