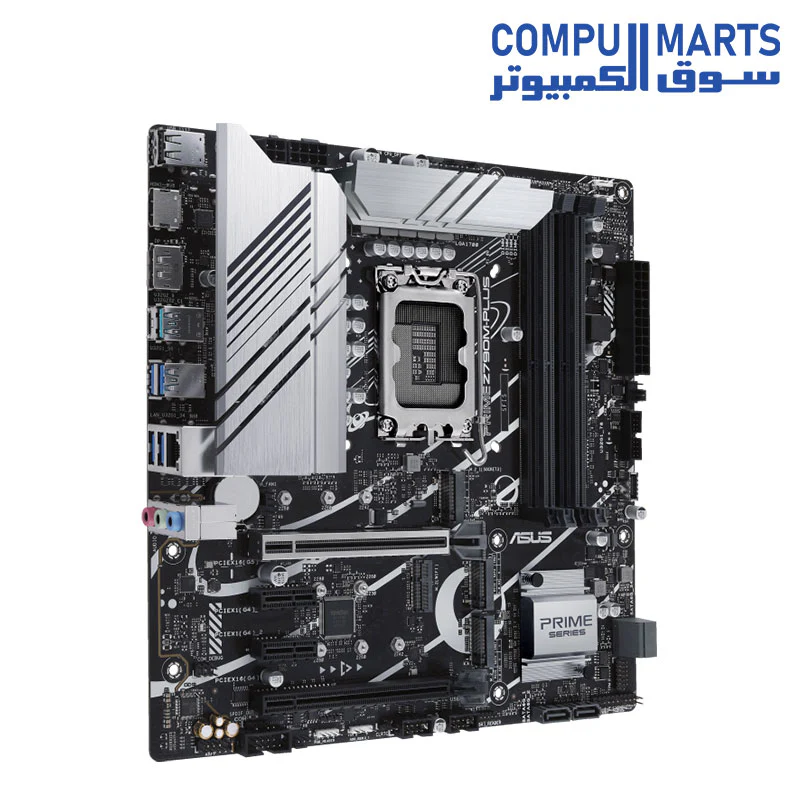

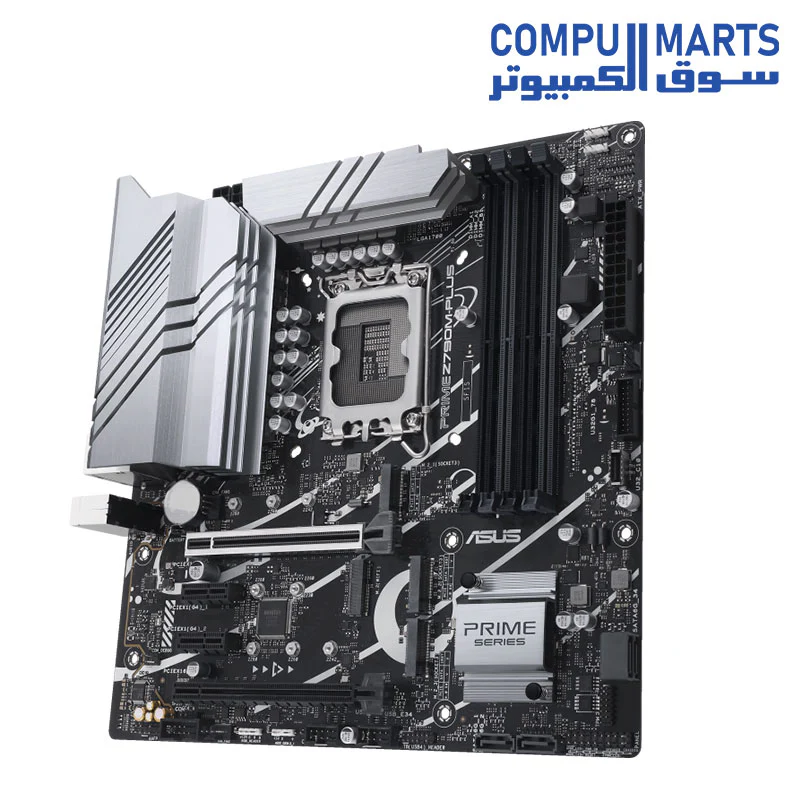

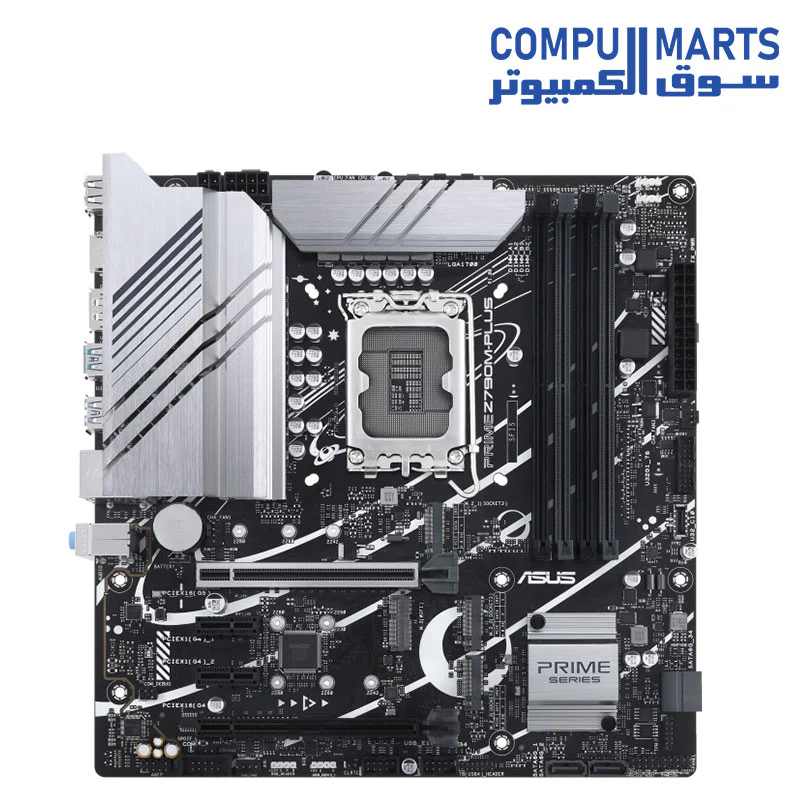

ASUS PRIME Z790M-PLUS Motherboard
| Category | Specification Details |
|---|---|
| Model | ASUS PRIME Z790M-PLUS |
| CPU Support | Intel® Socket LGA1700 for 13th & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| Chipset | Intel® Z790 Chipset |
| Memory | 4 x DIMM, Max. 192GB, DDR5 (Up to 7200+ OC), Dual Channel, OptiMem II |
| Graphics Output | 1 x DisplayPort 1.4 (4K@60Hz), 1 x HDMI® 2.1 (4K@60Hz) |
| Expansion Slots | 1 x PCIe 5.0 x16 (Processor) | 1 x PCIe 4.0 x16 (x4 mode), 2 x PCIe 4.0 x1 (Chipset) |
| Storage | 3 x M.2 PCIe 4.0 x4 slots | 4 x SATA 6Gb/s ports | RAID 0/1/5/10 support |
| Ethernet | 1 x Intel® 1Gb Ethernet with ASUS LANGuard |

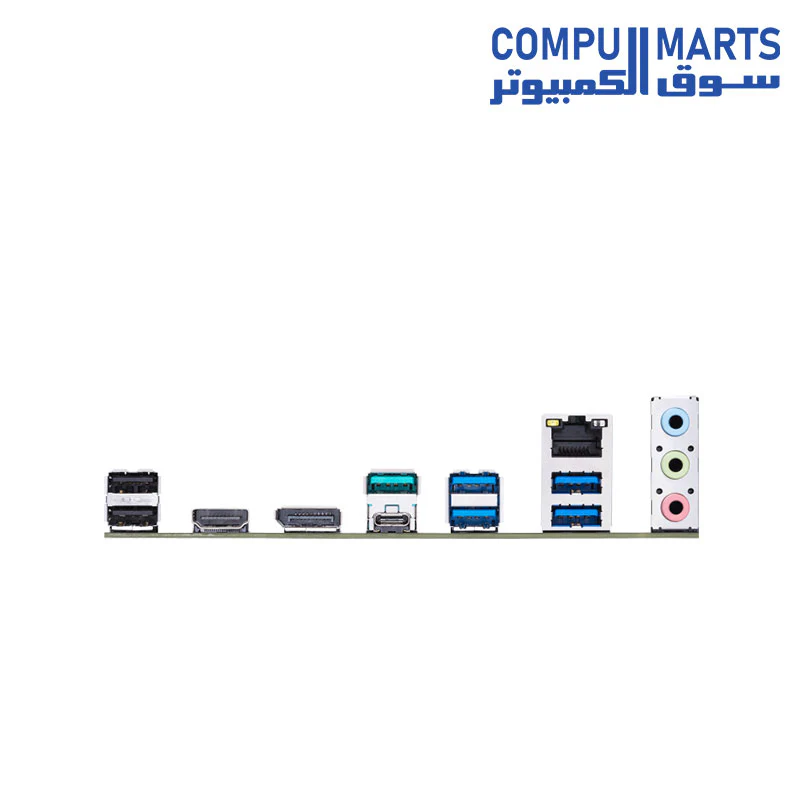

| USB Rear | 1 x USB 3.2 Gen 2x2 Type-C | 1 x USB 3.2 Gen 2 | 4 x USB 3.2 Gen 1 | 2 x USB 2.0 |
| USB Front | 1 x USB 3.2 Gen 1 (Type-C) | 1 x USB 3.2 Gen 1 Header | 2 x USB 2.0 Headers |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Special Features | AI Cooling II, ASUS 5X PROTECTION III, Aura Sync RGB, Thunderbolt™ (USB4) header support |
| Form Factor | mATX Form Factor (24.4 cm x 24.4 cm) |
$62.98
Original: $209.95
-70%ASUS PRIME Z790M-PLUS Motherboard—
$209.95
$62.98Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Category | Specification Details |
|---|---|
| Model | ASUS PRIME Z790M-PLUS |
| CPU Support | Intel® Socket LGA1700 for 13th & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| Chipset | Intel® Z790 Chipset |
| Memory | 4 x DIMM, Max. 192GB, DDR5 (Up to 7200+ OC), Dual Channel, OptiMem II |
| Graphics Output | 1 x DisplayPort 1.4 (4K@60Hz), 1 x HDMI® 2.1 (4K@60Hz) |
| Expansion Slots | 1 x PCIe 5.0 x16 (Processor) | 1 x PCIe 4.0 x16 (x4 mode), 2 x PCIe 4.0 x1 (Chipset) |
| Storage | 3 x M.2 PCIe 4.0 x4 slots | 4 x SATA 6Gb/s ports | RAID 0/1/5/10 support |
| Ethernet | 1 x Intel® 1Gb Ethernet with ASUS LANGuard |
| USB Rear | 1 x USB 3.2 Gen 2x2 Type-C | 1 x USB 3.2 Gen 2 | 4 x USB 3.2 Gen 1 | 2 x USB 2.0 |
| USB Front | 1 x USB 3.2 Gen 1 (Type-C) | 1 x USB 3.2 Gen 1 Header | 2 x USB 2.0 Headers |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Special Features | AI Cooling II, ASUS 5X PROTECTION III, Aura Sync RGB, Thunderbolt™ (USB4) header support |
| Form Factor | mATX Form Factor (24.4 cm x 24.4 cm) |
