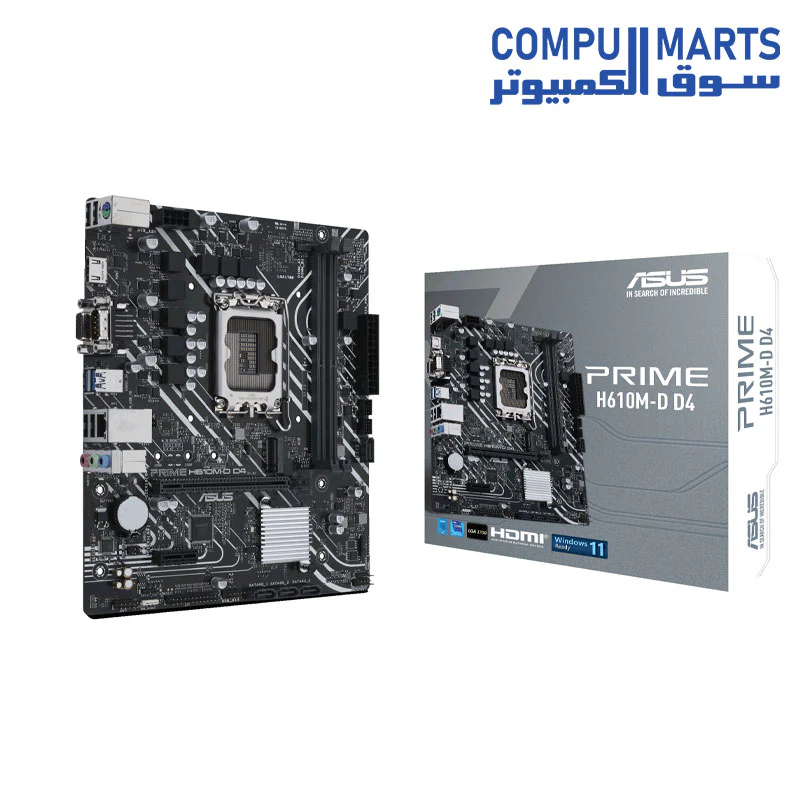

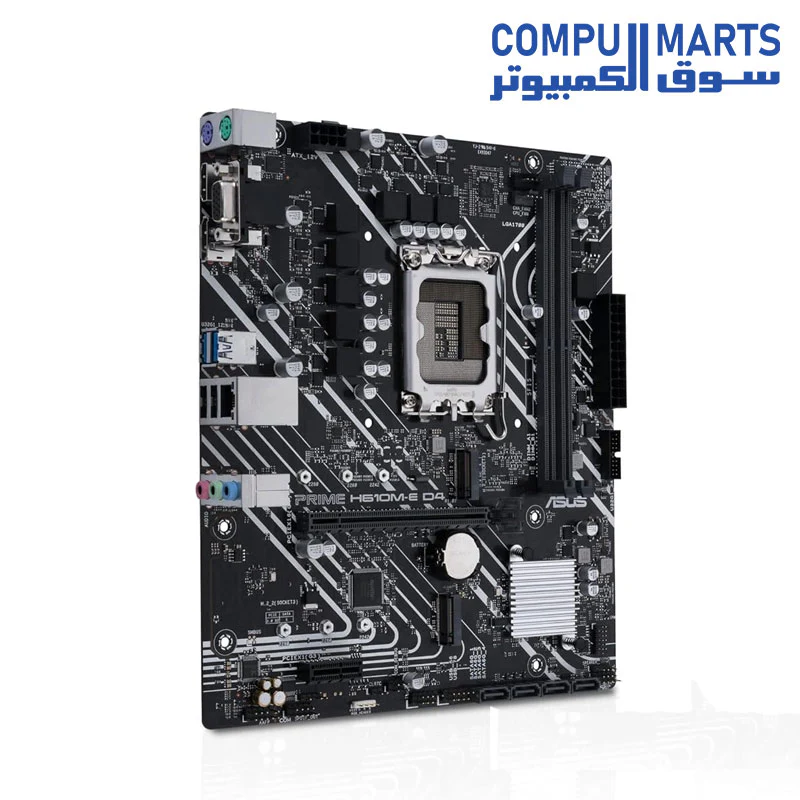

Asus Intel H610 (LGA 1700) mic-ATX motherboard with DDR4, PCIe 4.0, M.2 slot, Realtek 1 Gb Ethernet, HDMI, D-Sub, USB 3.2 Gen 1 ports, SATA 6 Gbps, COM port, LPT header, RGB header

Asus Intel H610 (LGA 1700) mic-ATX motherboard with DDR4, PCIe 4.0, M.2 slot, Realtek 1 Gb Ethernet, HDMI, D-Sub, USB 3.2 Gen 1 ports, SATA 6 Gbps, COM port, LPT header, RGB header

Asus Intel H610 (LGA 1700) mic-ATX motherboard with DDR4



  • Intel LGA 1700 socket: Ready for 13th & 12th Gen Intel processors

  • Comprehensive cooling: PCH heatsink and Fan Xpert

  • Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1 support

  • 5X Protection III: Multiple hardware safeguards for all-round protection

  • Model

  • PRIME H610M-D D4

  • CPU

  • Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors

  • Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.

  • Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

  • Chipset

  • Intel H610 Chipset

  • Memory

  • 2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory

  • Dual Channel Memory Architecture

  • Supports Intel Extreme Memory Profile (XMP)

  •  Actual memory data rate depends on the CPU types and DRAM modules

  • Graphics

  • 1 x D-Sub port

  • 1 x HDMI port

  •  Supports 4K 60Hz as specified in HDMI 2.1.

  • Expansion Slots

  • Intel 13th & 12th Gen Processors

  • 1 x PCIe 4.0 x16 slot

  • Intel H610 Chipset

  • 1 x PCIe 3.0 x1 slot

  • Storage

  • Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports

  • Intel H610 Chipset

  • M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

  • 4 x SATA 6Gb/s ports

  • * The M.2 slot shares bandwidth with the SATA6G_4 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_4 port cannot be used.

  • Ethernet

  • 1 x Realtek 1Gb Ethernet

  • USB

  • Rear USB (Total 6 ports)

  • 2 x USB 3.2 Gen 1 ports (2 x Type-A)

  • 4 x USB 2.0 ports (4 x Type-A)

  • Front USB (Total 4 ports)

  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

  • 1 x USB 2.0 header supports additional 2 USB 2.0 ports

  • Audio

  • Realtek 7.1 Surround Sound High Definition Audio CODEC*

  • - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

  • - Supports up to 24-Bit/192 kHz playback

  • Audio Features

  • - Audio Shielding

  • - Premium audio capacitors

  • - Dedicated audio PCB layers

  • * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

  • Back Panel I/O Ports

  • 2 x USB 3.2 Gen 1 ports (2 x Type-A)

  • 4 x USB 2.0 ports (4 x Type-A)

  • 1 x D-Sub port

  • 1 x HDMI port

  • 1 x Realtek 1Gb Ethernet port

  • 3 x Audio jacks

  • 1 x COM port

  • 1 x PS/2 Keyboard/Mouse combo port

  • Internal I/O Connectors

  • Fan and Cooling related

  • 1 x 4-pin CPU Fan header

  • 1 x 4-pin Chassis Fan header

  • Power related

  • 1 x 24-pin Main Power connector

  • 1 x 8-pin +12V Power connector

  • Storage related

  • 1 x M.2 slot (Key M)

  • 4 x SATA 6Gb/s ports

  • USB

  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

  • 1 x USB 2.0 header supports additional 2 USB 2.0 ports

  • Miscellaneous

  • 1 x RGB header

  • 1 x Clear CMOS header

  • 1 x Front Panel Audio header (AAFP)

  • 1 x LPT header

  • 1 x S/PDIF Out header

  • 1 x Speaker header

  • 1 x SPI TPM header (14-1pin)

  • 1 x 10-1 pin System Panel header

  • Special Features

  • ASUS 5X PROTECTION III

  • - DIGI+ VRM

  • - LANGuard

  • - Overvoltage Protection

  • - SafeSlot Core

  • - Stainless-Steel Back I/O

  • ASUS Q-Design

  • - Q-DIMM

  • - Q-Slot

  • ASUS Thermal Solution

  • - Aluminum heatsink design

  • ASUS Lighting Control

  • - RGB header

  • Software Features

  • ASUS Exclusive Software

  • Armoury Crate

  • AI Suite 3

  • - Performance And Power Saving Utility

  • TurboV EVO

  • EPU

  • DIGI+ VRM

  • Fan Xpert

  • ASUS CPU-Z

  • Norton Anti-virus software (Free Trial version)

  • WinRAR

  • UEFI BIOS

  • ASUS EZ DIY

  • - ASUS CrashFree BIOS 3

  • - ASUS EZ Flash 3

  • - ASUS UEFI BIOS EZ Mode

  • BIOS

  • 128 Mb Flash ROM, UEFI AMI BIOS

  • Manageability

  • WOL by PME, PXE

  • Accessories

  • Cables

  • 2 x SATA 6Gb/s cables

  • Miscellaneous

  • 1 x I/O Shield

  • 1 x M.2 ANCHOR

  • Installation Media

  • 1 x Support DVD

  • Documentation

  • 1 x User Guide

  • Operating System

  • Windows 11 64-bit, Windows 10 64-bit

  • Form Factor

  • mATX Form Factor

  • 9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )
